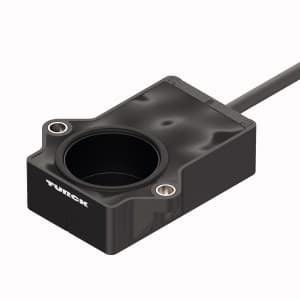

RI20P1-QR20-LU4X2 Turck Encoders
Part#:RI20P1-QR20-LU4X2
Manufacturer:Turck
Alt. Part#:100000187
Product Lifecycle:Active
Get a quick Quote!
RI20P1-QR20-LU4X2 Miniature Encoder, With Analog Output, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI20P1-QR20-LU4X2 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 174 g
- Cable length (L) 2.0 m
- Housing material Plastic, Ultem
- Output function Analog output
- Electrical connection Cable
- Voltage output 0.5…4.5 V
- Protection class IP68/IP69K
- Ambient temperature -40…+85 °C
- Shaft Type Blind hole shaft
- Shaft diameter D [mm] 6 mm6.35 mm
- Flange type Flange without mounting element
- Operating voltage 8…30 VDC
- Measuring range -10…10°

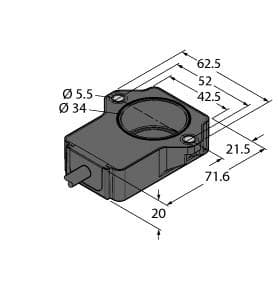

- Construction size 71.6 x 62.6 x 20 mm
- Technology Contactless
- Output type Absolute singleturn
- Encoder line Premium-Line
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI20P1-QR20-LU4X2 Description
Turck RI20P1-QR20-LU4X2 is a contactless rotary inductive angle sensor designed for precise angular position detection. It operates within an ambient air temperature range of -25 to +85°C and features a blind hole shaft that is washdown-resistant, making it suitable for harsh environments. This sensor is part of the Q-track QR20 series and comes pre-wired with a 2m / 6.5ft cable that terminates with bare end flying leads for easy installation. It has dimensions of H63mm x W72mm x D20mm and offers a high degree of protection with ratings of IP68 and IP69K. The supply voltage requirement is between 8Vdc and 30Vdc, with a nominal range of 12Vdc to 24Vdc. Its rectangular shape is constructed from a durable Plastic Ultem housing, and it features a 6mm bore size. The sensor is equipped with protection functions against short-circuit and reverse polarity incidents. It provides one analog output ranging from 0.5Vdc to 4.5Vdc and boasts a resolution of ≤0.09° or 12-bit, with a sampling rate of 800Hz. A green LED serves as both a multifunction visual position indicator and a power-on indicator. The measurement accuracy is noted with a 0.09° resolution, and the sensor has a current consumption of 100mA, capable of detecting angular positions from 0° to +20°.
Related documents RI20P1-QR20-LU4X2 Specs
