REM-102B6E-9F32B-H1151 Turck Industrial Automation Components
Part#:REM-102B6E-9F32B-H1151
Alt. Part#:100023547
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

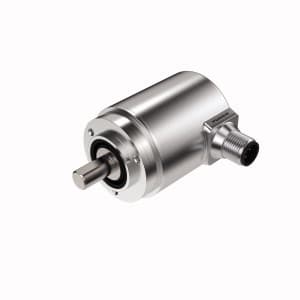

REM-102B6E-9F32B-H1151 Turck - REM-102B6E-9F32B-H1151 Absolute Rotary Encoder - Multiturn, Industrial Line
Product Details
- Weight 200 g
- Country Of Origin DEU
- HTS Code 9032894000
- Weight 200 grams
- Operating Voltage 10 volts, 30 volts
- Ambient Temperature -40 degrees celsius, 80 degrees celsius
- Country of Origin Germany
- Protection class shaft IP67
- Flange diameter Ø 46 mm
- Communication protocol SAE J1939
- Flange type Flange with stator coupling
- Protection class IP67
- Electrical connection Connector, M12 × 1
- Ambient temperature -40…+80 °C
- Housing material Die-cast zinc
- Operating voltage 10…30 VDC
- Shaft diameter D [mm] 6 mm
- Encoder line Industrial-Line
- Output type Absolute multiturn
- Shaft Type Blind hole shaft
- Technology Magnetic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of REM-102B6E-9F32B-H1151 on Powermatic Associates is $741.90. Order now.
About the product
Absolute Rotary Encoder - Multiturn, Industrial Line, Flange with slotted flex mount, Ø 46 mm, Hollow shaft, Ø 6mm, Optical measuring principle, Shaft material, stainless steel, , Protection class IP67 on housing and shaft side, ‐40…+80 °C, Max. 4000 rpm (continuous operation 2000 rpm), 10-30 VDC, SAE J1939, M12 connection, 5-pin, Singleturn resolution 14 bit scalable, default 14 bit, Multiturn resolution scalable up to 29 bit over total resolution, default 18 bit, Total resolution 32 bit scalable, default: 32 bit
REM-102B6E-9F32B-H1151 Related Documents
Similar products from: Turck Industrial Automation Components
Manufacturer warranty
REM-102B6E-9F32B-H1151 Turck
$741.90
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$741.90
$741.90 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare REM-102B6E-9F32B-H1151 with other Industrial Automation Components products
Weight
Country Of Origin
HTS Code
Operating Voltage
Ambient Temperature
Country of Origin
Protection class shaft
Flange diameter
Communication protocol
Flange type
Selected product
REM-102B6E-9F32B-H1151
Turck
REM-102B6E-9F32B-H1151 Turck - REM-102B6E-9F32B-H1151 Absolute Rotary Encoder - Multiturn, Industria...
Weight200 g
Country Of OriginDEU
HTS Code9032894000
Operating Voltage10 volts, 30 volts
Ambient Temperature-40 degrees celsius, 80 degr...
Country of OriginGermany
Protection class shaftIP67
Flange diameterØ 46 mm
Communication protocolSAE J1939
Flange typeFlange with stator coupling
Weight31 g
Country Of OriginDEU
HTS Code9032896085
Operating Voltage-
Ambient Temperature-
Country of Origin-
Protection class shaft-
Flange diameter-
Communication protocol-
Flange type-
BI30U-CK40-AP6X2-H1141
Turck
BI30U-CK40-AP6X2-H1141 Turck - BI30U-CK40-AP6X2-H1141 Inductive Sensor, With Extended Switching Dist...
Weight116 g
Country Of OriginDEU
HTS Code8536507000
Operating Voltage-
Ambient Temperature-
Country of Origin-
Protection class shaft-
Flange diameter-
Communication protocol-
Flange type-
About the manufacturer
Powermatic Associates is an authorized Turck distributor, committed to delivering top-tier industrial solutions that align with your operational requirements. Turck is a globally recognized provider of advanced automation technology, specializing in sensor, connectivity, and fieldbus technology. Their extensive product range includes robust sensors such as inductive, capacitive, photoelectric, and...
