REI-E-114I8T-2B5000-H1181 Turck Industrial Automation Components

REI-E-114I8T-2B5000-H1181 on Powermatic Associates
Turck

Part#:REI-E-114I8T-2B5000-H1181

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

REI-E-114I8T-2B5000-H1181 Turck - REI-E-114I8T-2B5000-H1181 Incremental Encoder, Efficiency Line

Product Details

  • Country of Origin
    India
  • Operating Voltage
    10 volts, 30 volts
  • Weight
    337 grams
  • Ambient Temperature
    -20 degrees celsius, 70 degrees celsius
  • Protection class shaft
    IP64
  • Housing material
    Die-cast zinc
  • Protection class
    IP64
  • Ambient temperature
    -20…+70 °C
  • Output function
    Push-Pull/HTL, with inverted signals
  • Operating voltage
    10…30 VDC
  • Electrical connection
    Connector, M12 × 1
  • Resolution, incremental
    5000  ppr

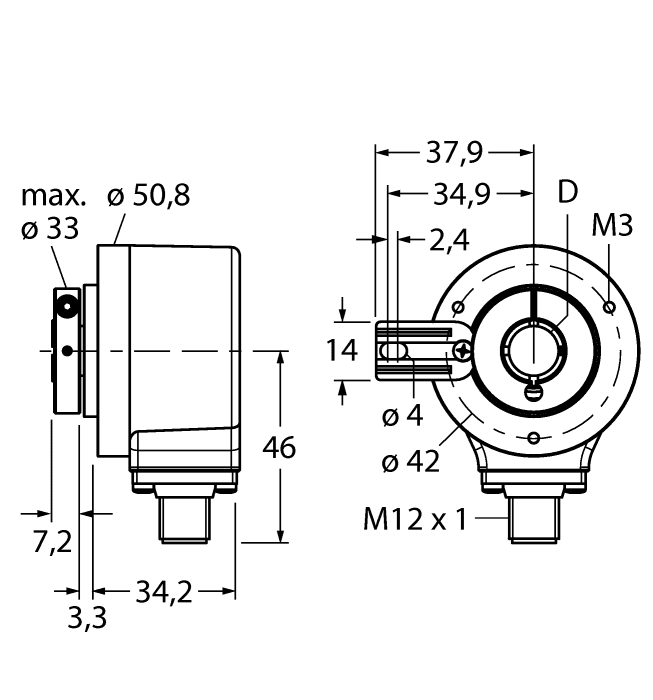

  • Flange diameter
    Ø  50.8  mm
  • Shaft diameter D [mm]
    8  mm
  • Shaft Type
    Hollow shaft
  • Flange type
    Flange with mounting element
  • Encoder line
    Efficiency-Line
  • Technology
    Optical
  • Output type
    Incremental

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Incremental Encoder, Efficiency Line, Resolution, incremental 5000 ppr, Flange with torque stop, Hollow shaft, Ø 8 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 5000 pulses per revolution

REI-E-114I8T-2B5000-H1181 Related Documents

English-1630966041264.pdf
