PT7500PSIG-2021-U6-H1143/X Turck Industrial Automation Components

PT7500PSIG-2021-U6-H1143/X on Powermatic Associates
Turck

Part#:PT7500PSIG-2021-U6-H1143/X

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

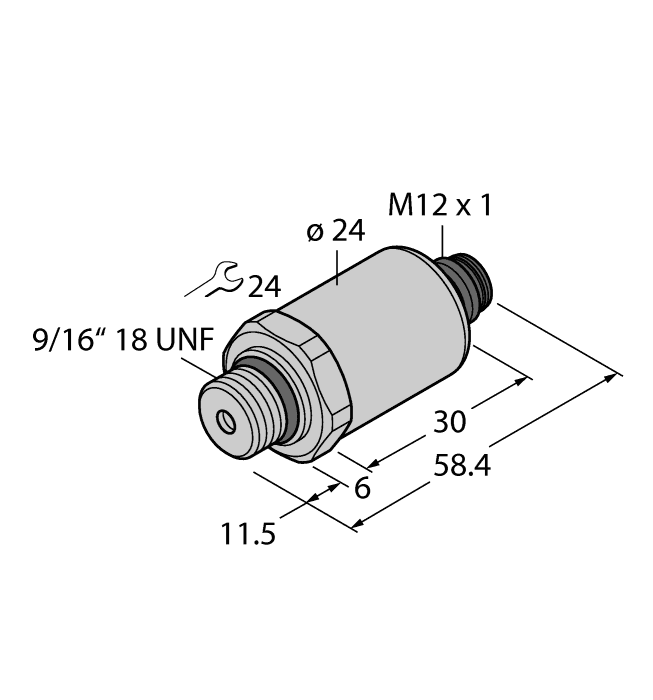

PT7500PSIG-2021-U6-H1143/X Turck - PT7500PSIG-2021-U6-H1143/X Pressure Transmitter, Ratiometric Output (3-Wire)

Product Details

  • Weight
    90 grams
  • Operating Voltage
    5.5 volts
  • Country of Origin
    Switzerland
  • Ambient Temperature
    -30 degrees celsius, 85 degrees celsius
  • Protection class
    IP67
  • Medium temperature
    -40…+135 °C
  • Pressure transducer material
    Stainless steel 1.4435 (AISI 316L)
  • Ambient temperature
    -30…+85 °C
  • Housing material
    Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyacrylamide 50 % GF UL 94 V-0
  • Relative pressure bar
    0…517.11 bar rel.
  • Design
    Without display
  • Voltage output
    0.5…4.5 V
  • Electrical output
    Voltage output (3-wire)
  • Electrical connection
    Connector, M12 × 1
  • Pressure type
    Relative pressure
  • Relative pressure psi
    0…7500 psi rel.
  • Operating voltage
    4.5…5.5 VDC
  • Process connection
    9/16”-18 UNF male thread

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Pressure Transmitter, Ratiometric Output (3-Wire), , Fully welded metal measuring cell, Pressure range 0…7500 psi rel., Pressure peak orifice, 5 VDC ± 10 %, Ratiometric output 10…90 %, Process connection 9/16-18 UNF (SAE) male thread, Plug-in device, M12 × 1, "
