PT7500PSIG-2003-IX-H1143 Turck Pressure Sensors

Name: PT7500PSIG-2003-IX-H1143
Brand: Turck

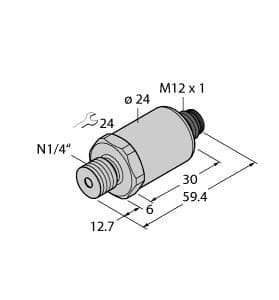

Turck PT7500PSIG-2003-IX-H1143 PT7500PSIG-2003-IX-H1143 Pressure Transmitter, With Current Output (2-Wire)

Part#:PT7500PSIG-2003-IX-H1143

Manufacturer:Turck

Alt. Part#:100002242

Product Lifecycle:Active

Get a quick Quote!

PT7500PSIG-2003-IX-H1143 Pressure Transmitter, With Current Output (2-Wire)

About the manufacturer: Turck is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PT7500PSIG-2003-IX-H1143 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
106 g
Approvals
⁪⁪⁪‌‍‍‌‌‌‌‌‌‌‍‍‌‍‌‍‍‌‍‍‍‌‍‍‌‌‍‌‌ATEX II 1/2 GD, IECEx II 1/2 GD
Pressure transducer material
Stainless steel 1.4435 (AISI 316L)
Protection class
IP67
Ambient temperature
-25…+85 °C
Housing material
Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyacrylamide 50 % GF UL 94 V-0
Medium temperature
-30…+120 °C
Current output
4…20 mA
Electrical output
Current output (2-wire)
Relative pressure bar
0…517.11 bar rel.
Electrical connection
Connector, M12 × 1
Process connection
1/4” NPT-18 male thread
Pressure type
Relative pressure
Design
Without display
Operating voltage
10…30 VDC
Relative pressure psi
0…7500 psi rel.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PT7500PSIG-2003-IX-H1143 Description

Turck PT7500PSIG-2003-IX-H1143 is a sensor designed for instrumentation relative pressure measurement and transmission. It operates within an ambient air temperature range of -30°C to +85°C and is suitable for fluid mediums with temperatures ranging from -40°C to +125°C. This model, part of the PT2000 series, features a pressure snubber that is ATEX compliant, ensuring its suitability for explosive environments. It comes pre-equipped with a 4-pin M12 Eurofast QD male connector and a 1/4" NPT threaded male process port for easy installation. The sensor's cylindrical body is made from 1.4404 (316L) stainless steel for both the housing and the pressure transducer, offering durability and resistance to corrosion. It is designed to measure pressures from 0 to +7500psig and provides an analog output of 4-20mA. The device operates on a supply voltage of 7-33vdc (12Vdc / 24Vdc nom.) and has a current consumption of 23mA. It is protected to a degree of IP67, ensuring protection against dust and temporary immersion in water.
