PT2PSIG-1503-I2-H1143/D840 Turck Pressure Sensors

PT2PSIG-1503-I2-H1143/D840 on Powermatic Associates
Turck

Part#:PT2PSIG-1503-I2-H1143/D840

Manufacturer:Turck

Category:Pressure Sensors

Alt. Part#:100004643

Product Lifecycle:Active

Get a quick Quote!

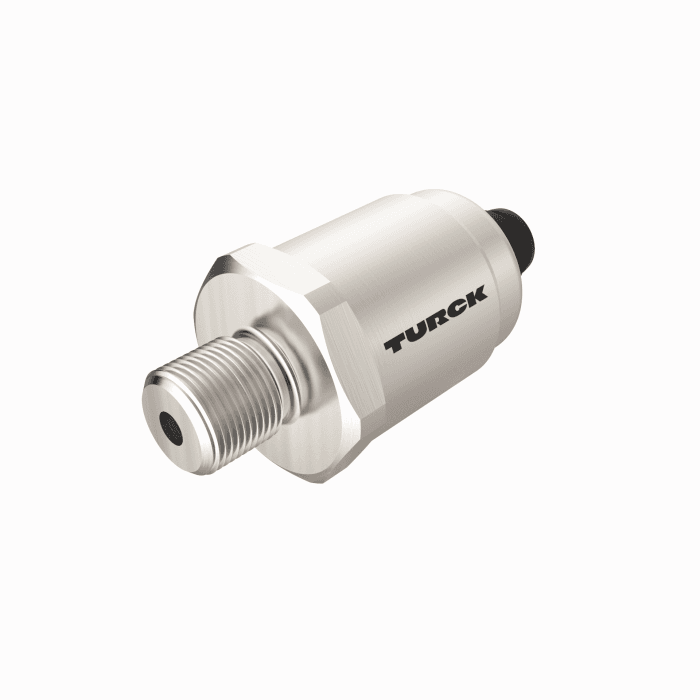

PT2PSIG-1503-I2-H1143/D840 Turck - PT2PSIG-1503-I2-H1143/D840 Pressure Transmitter, With Current Output (2-Wire)

About the manufacturer: Turck is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PT2PSIG-1503-I2-H1143/D840 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    88 g
  • Country Of Origin
    CHE
  • HTS Code
    9026204000
  • Weight
    88 grams
  • Operating Voltage
    10 volts, 30 volts
  • Country of Origin
    Switzerland
  • Ambient Temperature
    -25 degrees celsius, 85 degrees celsius

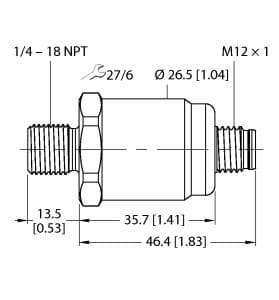

  • Process connection
    1/4” NPT-18 male thread
  • Electrical connection
    Connector, M12 × 1
  • Operating voltage
    10…30 VDC
  • Housing material
    Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyacrylamide 50 % GF UL 94 V-0
  • Current output
    4…20 mA
  • Protection class
    IP67
  • Medium temperature
    -15…+85 °C
  • Ambient temperature
    -25…+85 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PT2PSIG-1503-I2-H1143/D840 Description

Pressure Transmitter, With Current Output (2-Wire), , Ceramic measuring cell, Extremely high measuring accuracy, Compact and robust design, Excellent temperature behavior, , Pressure range 0…2 psi rel., , 10…30 VDC, Analog output 4…20 mA, Process connection 1/4-18 NPT male thread, Plug-in device, M12 × 1, "

Related documents PT2PSIG-1503-I2-H1143/D840 Specs

PT2PSIG-1503-I2-H1143/D840 English-1630966249235.pdf

Manufacturer warranty

$377.20

Request a quote, and we will send availability within minutes.
