PSG 3-2 Turck Cordsets
Product Details
- Type Cordsets
- Weight 57 g
- Gauge 24 AWG
- Number of conductors 3
- RoHS Yes
- Series M8 picofast
- Cable Length 2 m
- Country Of Origin MEX
- HTS Code 8544429090
- Connector 1 - Configuration Straight
- Connector 1 - Type Male Connector
- Connector 1 - Size M8
- Connector 1 - Pins 3
- Weight 56.699 grams
- Voltage 125 volts
- Current 4 amperes
- Length 2.0 meters
- Country of Origin Mexico
- Cable length (L) 2.0 m
- Approvals UL Listed, CSA, CE, RoHS
- Connector A - Number of Pins 3
- Cable Jacket Color Yellow
- Connector A - Style Straight, Male
- Cable Jacket Material PVC
- Connector A Ø 8 mm
- Application Actuator and Sensor
- Number of Conductors 3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PSG 3-2 on Powermatic Associates is $15.80. Order now.
About the product

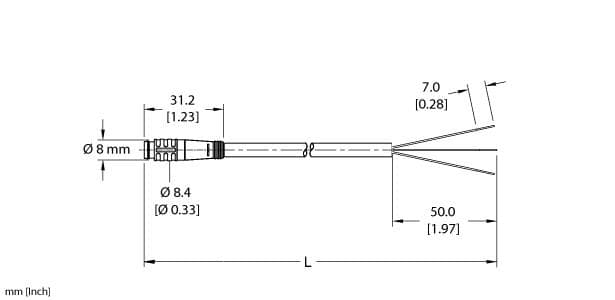

Actuator and Sensor Cordset, Connection Cable, Cable length (L) 2 m, M8, Male, Straight, 3-pin, Snap-on Connector, General Purpose Cable, Yellow PVC jacket, 3X24 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Cable length: 2 m
