NI65R-S32SR-VP44X Turck Industrial Automation Components

Name: NI65R-S32SR-VP44X
Brand: Turck
Price: 2035.5 USD
Availability: BackOrder

NI65R-S32SR-VP44X on Powermatic Associates

Part#:NI65R-S32SR-VP44X

Manufacturer:Turck

Alt. Part#:1440008

Product Lifecycle:Active

Get a quick Quote!

NI65R-S32SR-VP44X Inductive Sensor, Ring Sensor

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the NI65R-S32SR-VP44X Turck price in the box on the right side or send a quick quote.

Product Details

Weight
753 g
Country Of Origin
DEU
HTS Code
8536507000
Ambient temperature
-25…+70 °C
Inside ring diameter D
65 mm
Special features
Ring sensor, static output
Protection class
IP65
Housing material
Plastic, ABS
Design
Ring sensor
Operating voltage
10…55 VDC

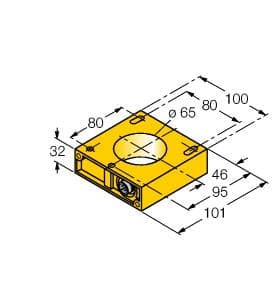

Construction size
175 x 100 x 32 mm, S32SR
Electrical connection
Terminal chamber
Output function
Complementary contact, PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NI65R-S32SR-VP44X Description

Turck NI65R-S32SR-VP44X is an inductive proximity sensor designed for detecting objects within a 12-65mm range. It operates within an ambient air temperature range of -25°C to +70°C and is equipped with a wiring chamber terminal block and Pg 9 entry for connections. This sensor is part of the NI...-S32 series and features a 32mm thick rectangular body with a 65mm ring, ensuring a compact form factor. It offers a degree of protection rated at IP65, making it suitable for various industrial environments. The supply voltage requirement ranges from 10-55Vdc, accommodating 12Vdc, 24Vdc, and 48Vdc nominal voltages. With a maximum switching frequency of 8Hz and a response time of 8ms, this sensor provides timely output signals through its 1 x digital output (10-55Vdc; PNP; 200mA max.). The control circuit is rated for a current of 200mA, and the sensor consumes 20mA when no load is present. The housing and sensing face are made from ABS (Acrylonitrile Butadiene Styrene), ensuring durability. It supports both NO (Normally Open) and NC (Normally Closed) complementary outputs for versatile application in automation systems.

$2,035.50

Request a quote, and we will send availability within minutes.

Select Qty:

$2,035.50

$2,035.50 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
