FK46PS-0.2/M16 Turck Panel-Mount Receptacles

FK46PS-0.2/M16 on Powermatic Associates
Turck

Part#:FK46PS-0.2/M16

Manufacturer:Turck

Alt. Part#:U2-28508

Product Lifecycle:Active

In-stock parts: 3

Nov 16, 2024

FK46PS-0.2/M16 M12 Power Flange, Front Mount

About the manufacturer: Turck is one of the manufacturers that offers Panel-Mount Receptacles that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the FK46PS-0.2/M16 Turck price in the box on the right side or send a quick quote.

Product Details

  • RoHS
    Yes
  • Country Of Origin
    USA
  • HTS Code
    8536694020
  • Mounting Thread A
    M16 × 1.5
  • Current
    12 A
  • Voltage
    630 V
  • Material coupling/housing A
    Brass
  • Connector A - Number of Pins
    3+PE
  • Connector A
    M12 × 1
  • Connector A - Style
    Female
  • Number of Conductors
    4
  • Application
    Power (>11 Amps)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

FK46PS-0.2/M16 Description

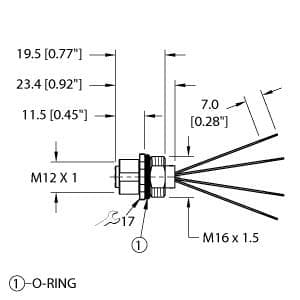

Turck FK46PS-0.2/M16 is a connector (receptacle) designed for panel-mount applications, featuring a nickel-plated brass housing with a PVC jacket. This part falls under the M12 powerfast to bare leads sub-range and is equipped with a 4-pin M12 powerfast female S-coded receptacle, complemented by a female M16 panel-mounting thread and bare end flying leads. The connector has a length of 20cm (approximately 7 inches), is rated for a voltage of 630Vac, and can handle a current up to 12A.

Related documents FK46PS-0.2/M16 Specs

FK46PS-0.2/M16 English-1630968002904.pdf
