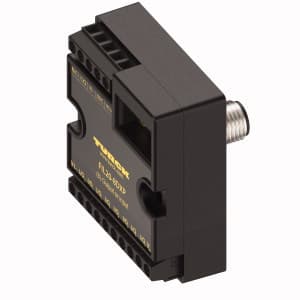

FIL20-8DXP-E Turck I/O Modules

Turck FIL20-8DXP-E FIL20-8DXP-E I/O Hub for connection of digital signals to IO-Link Master, 8 Universal Digital Channels, PNP
Turck

Part#:FIL20-8DXP-E

Manufacturer:Turck

Alt. Part#:100005647

Product Lifecycle:Active

Get a quick Quote!

FIL20-8DXP-E I/O Hub for connection of digital signals to IO-Link Master, 8 Universal Digital Channels, PNP

About the manufacturer: Turck is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the FIL20-8DXP-E Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    126 g
  • Product Family
    FIL20, IO-Link
  • Protection class
    IP20
  • Ambient temperature
    -40…+70 °C
  • Device type
    I/O hub, I/O Module, Compact station
  • Signal type
    Digital input, Digital output
  • Connection technology signal
    Screw terminal, M12
  • Fieldbus Protocol
    IO-Link

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

FIL20-8DXP-E Description

Turck FIL20-8DXP-E is a remote I/O controller designed for surface mounting with a net width of 55 mm, depth of 42.9 mm, and height of 62.5 mm. It operates within an ambient air temperature range of -40 to +70 °C and offers a degree of protection rated at IP20. This part features 8 digital inputs (PNP; universal digital channels) that can be configured as 8DO digital outputs with a maximum of 1A each. It belongs to the FIL20 series and is designed with a rear M12 connector for direct feeding through a cabinet wall, facilitating the connection of digital signals to an IO-Link master. The connection type is screw terminal connections. It requires a supply voltage of 24Vdc and utilizes the IO-Link communication protocol.

Related documents FIL20-8DXP-E Specs

FIL20-8DXP-E English.pdf
