DW1000-55-01-2A1000-CA Turck Industrial Automation Components

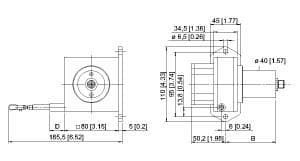

Turck DW1000-55-01-2A1000-CA is a linear encoder designed with a plastic housing and stainless steel wire, suitable for operation in ambient air temperatures ranging from 0 to +50°C. It consumes 50mA of current and offers a degree of protection rated at IP50. The dimensions of this encoder are H40mm x W40mm x D58mm. It features 1 x digital output (push-pull; 8Vdc-30Vdc) and provides a resolution of 0.08mm linear, achievable from 1000ppr in the built-in encoder when using a 1000mm drum circumference. This mini draw-wire sensor assembly is part of the DW55 series and incorporates a built-in incremental encoder design. It comes pre-wired with a 2m / 6.5ft cord with bare end flying leads for connectivity and supports a supply voltage range of 5Vdc-24Vdc (6Vdc / 12Vdc / 24Vdc). The stroke length is adjustable from 0 to 1000mm (0 to 1m). Protection functions include short-circuit and reverse polarity protection.
