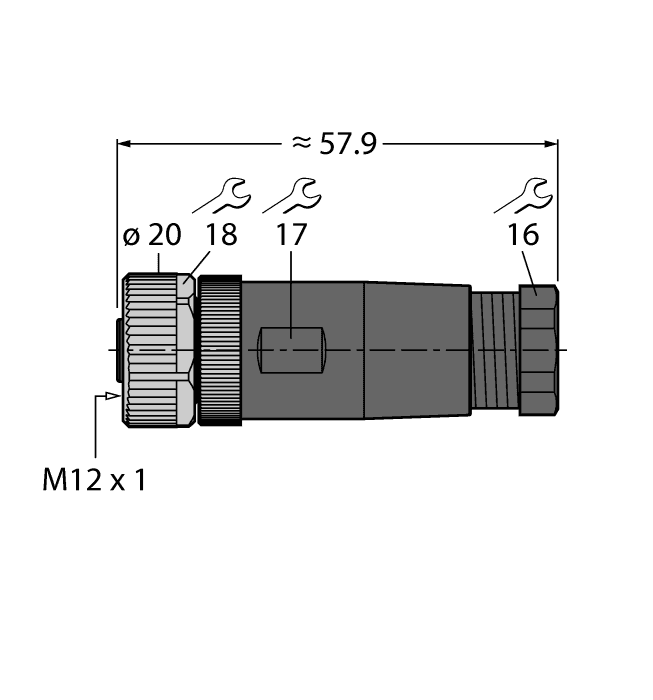

BM 8151-0/PG9 Turck Field Wireable Connectors

Turck BM 8151-0/PG9 BM 8151-0/PG9 Actuator and Sensor Field Wireable
Turck

Part#:BM 8151-0/PG9

Manufacturer:Turck

Alt. Part#:U8151-1

Product Lifecycle:Active

Get a quick Quote!

BM 8151-0/PG9 Actuator and Sensor Field Wireable

About the manufacturer: Turck is one of the manufacturers that offers Field Wireable Connectors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BM 8151-0/PG9 Turck price in the box on the right side or send a quick quote.

Product Details

  • Max Wire Gauge
    0.75  mm²
  • Current
    4 A
  • Number of Pins
    5
  • Design
    Straight, Female
  • Housing material
    PA
  • Voltage
    60 V
  • Connection mode
    Screw/clamp connection
  • Coupling nut/screw material
    GD-Zn
  • Mechanical connection
    M12 × 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BM 8151-0/PG9 Description

Turck - BM 8151-0/PG9

Related documents BM 8151-0/PG9 Specs

BM 8151-0/PG9 English.pdf

Manufacturer warranty

$36.60

Request a quote, and we will send availability within minutes.

Select Qty:

$36.60

$36.60 each

Average response time: 11 minutes
