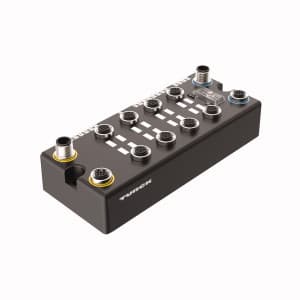

BLCCO-8M12LT-4AI-VI-8XSG-P Turck I/O Modules

Turck BLCCO-8M12LT-4AI-VI-8XSG-P is a remote I/O controller within the BL compact series, designed with an auxiliary power for CANopen in a large housing. It operates on a 24Vdc supply voltage and is encased in a fiberglass reinforced nylon housing with nickel-plated brass connectors. This part features 8 x 5-pin M12 female connectors for I/O ports, 2 x 5-pin M12 female connectors for FIELDBUS, and 2 x 4-pin M12 connectors (male + female) for voltage supply. It offers a degree of protection rated at IP67 and IP69K and is designed for surface mounting. The communication protocol supported is CANopen. The net dimensions are 168 mm in height, 44.5 mm in depth, and 71 mm in width. It is designed to operate in ambient air temperatures ranging from -40 to +70°C. The connection capacity includes 8 ports with 8 x digital inputs (PNP; which can also be configured as 8DO digital outputs with a maximum of 500mA), and 4 x analog inputs (configurable among 0-20mA / 4-20mA / -10...+10Vdc / 0-10Vdc). It features protection functions against short-circuit and supports communication speeds ranging from 10kbps to 1000kbps.
