BI5U-Q08-AN6X2-0.3-RS4T Turck Inductive Sensors

BI5U-Q08-AN6X2-0.3-RS4T on Powermatic Associates
Turck

Part#:BI5U-Q08-AN6X2-0.3-RS4T

Manufacturer:Turck

Alt. Part#:1608994

Product Lifecycle:Active

Get a quick Quote!

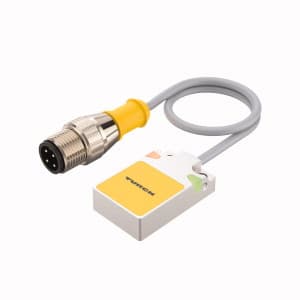

BI5U-Q08-AN6X2-0.3-RS4T Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI5U-Q08-AN6X2-0.3-RS4T Turck price in the box on the right side or send a quick quote.

Product Details

  • RoHS
    Yes
  • Country Of Origin
    USA
  • HTS Code
    8536507000
  • Operating Voltage
    10 volts, 30 volts
  • Ambient Temperature
    -30 degrees celsius, 85 degrees celsius
  • Special features
    uprox+, Factor 1, Resistant to magnetic fields
  • Ambient temperature
    -30…+85 °C
  • Protection class
    IP68
  • Housing material
    Metal, Zamak, Nickel Plated
  • Mounting
    Flush
  • Electrical connection
    Cable with connector, M12 × 1
  • Design
    Rectangular
  • Cable length (L)
    0.30  m
  • Operating voltage
    10…30 VDC
  • Output function
    NO contact, NPN
  • Rated switching distance
    5 mm
  • Construction size
    32 x 20 x 8 mm, Q08

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI5U-Q08-AN6X2-0.3-RS4T Description

Inductive Sensor, Rated switching distance 5 mm, Cable length (L) 0.3 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, NPN output, Pigtail with M12 × 1 connector

Related documents BI5U-Q08-AN6X2-0.3-RS4T Specs

BI5U-Q08-AN6X2-0.3-RS4T edb_1608994_eng_us.pdf
