BI2-M12-AN6X Turck Inductive Sensors

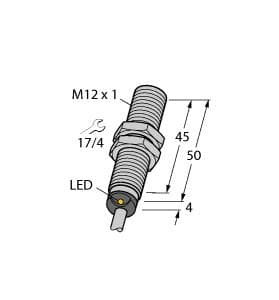

Turck BI2-M12-AN6X BI2-M12-AN6X Inductive Sensor
Turck

Part#:BI2-M12-AN6X

Manufacturer:Turck

Alt. Part#:46051

Product Lifecycle:Active

Get a quick Quote!

BI2-M12-AN6X Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI2-M12-AN6X Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    109 g
  • RoHS
    Yes
  • Country Of Origin
    USA
  • HTS Code
    8536507000
  • Ambient temperature
    -25…+70 °C
  • Construction size
    M12 x 1
  • Design
    Threaded barrel
  • Electrical connection
    Cable
  • Operating voltage
    10…30 VDC
  • Protection class
    IP67
  • Output function
    NO contact, NPN
  • Rated switching distance
    2 mm
  • Cable length (L)
    2.0  m
  • Housing material
    Metal, CuZn, Chrome-plated
  • Mounting
    Flush

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI2-M12-AN6X Description

Turck BI2-M12-AN6X is an inductive proximity sensor belonging to the BI...-M12 series, designed for embeddable applications. It operates with a supply voltage range of 10-30Vdc, including nominal 12Vdc and 24Vdc, and features a chrome-plated brass housing with a PA12-GF30 (glass fiber reinforced Polyamide) sensing face and an EPTR (Ethylene Propylene Terpolymer Rubber) end cap. The sensor is equipped with a PVC cable jacket and is connected via a pre-wired 2m / 6.5ft cable terminated with bare end flying leads. Its shape is an M12 partially threaded barrel, offering a degree of protection rated at IP67. The sensor has a maximum switching frequency of 2kHz / 2000Hz, can operate in ambient air temperatures ranging from -25°C to +70°C, and includes 1 x digital output (10-30Vdc; NPN; 200mA max.). It has a no-load current consumption of 15mA, a sensing distance of 2mm, and is equipped with protection functions against short-circuit (pulsed), overload, and reverse polarity. The thread size is M12, and it operates in a Normally Open (NO) mode.

Related documents BI2-M12-AN6X Specs

BI2-M12-AN6X English.pdf
