TM5SDI2D Schneider Electric I/O Modules

TM5SDI2D on Powermatic Associates
Schneider Electric

Part#:TM5SDI2D

Manufacturer:Schneider Electric

Category:I/O Modules

Product Lifecycle:Active

Product description

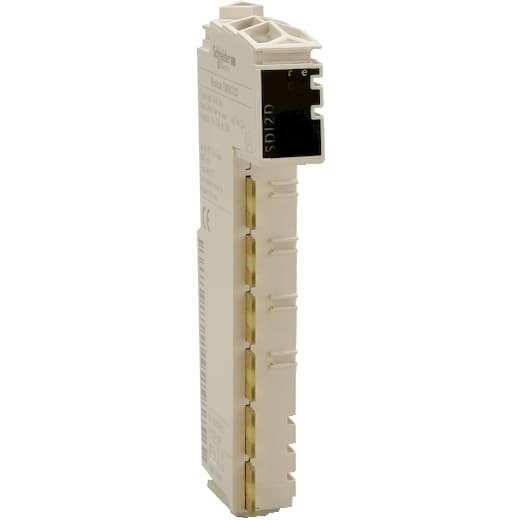

Schneider Electric TM5SDI2D is an I/O unit within the Modicon TM5 I/O modules sub-range, designed for DC digital input applications. It features a removable spring terminal block connection type, which is sold separately, and comes in a white color. The unit operates on a supply voltage of 19-30Vdc, with a nominal voltage of 24Vdc, and can be mounted on a symmetrical DIN rail. It is designed to operate within an ambient air temperature range of +14 to +131°F (-10 to +55°C) for horizontal installation, with a derating factor allowing for +14 to +140°F (-10 to +60°C), and +14 to +122°F (-10 to +50°C) for vertical installation. The TM5SDI2D offers an IP20 degree of protection and consumes 24mA (5Vdc via bus) or 12mA (24Vdc with all inputs ON). It includes protection functions against overload and short-circuit, and features 2 x digital inputs (24Vdc; Sink). The unit is designed to withstand an ambient air temperature for storage of -40 to +158°F (-40 to +70°C) and a humidity range of 5-95% without condensation. Power dissipation/losses are rated at 0.41 W.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

TM5SDI2D Schneider Electric

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

About the Product Category

Industrial I/O (input/output) modules are critical industrial network components that deliver input signals from a field device, such as a sensor or actuator, to a controller.
