Part#:QO270

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

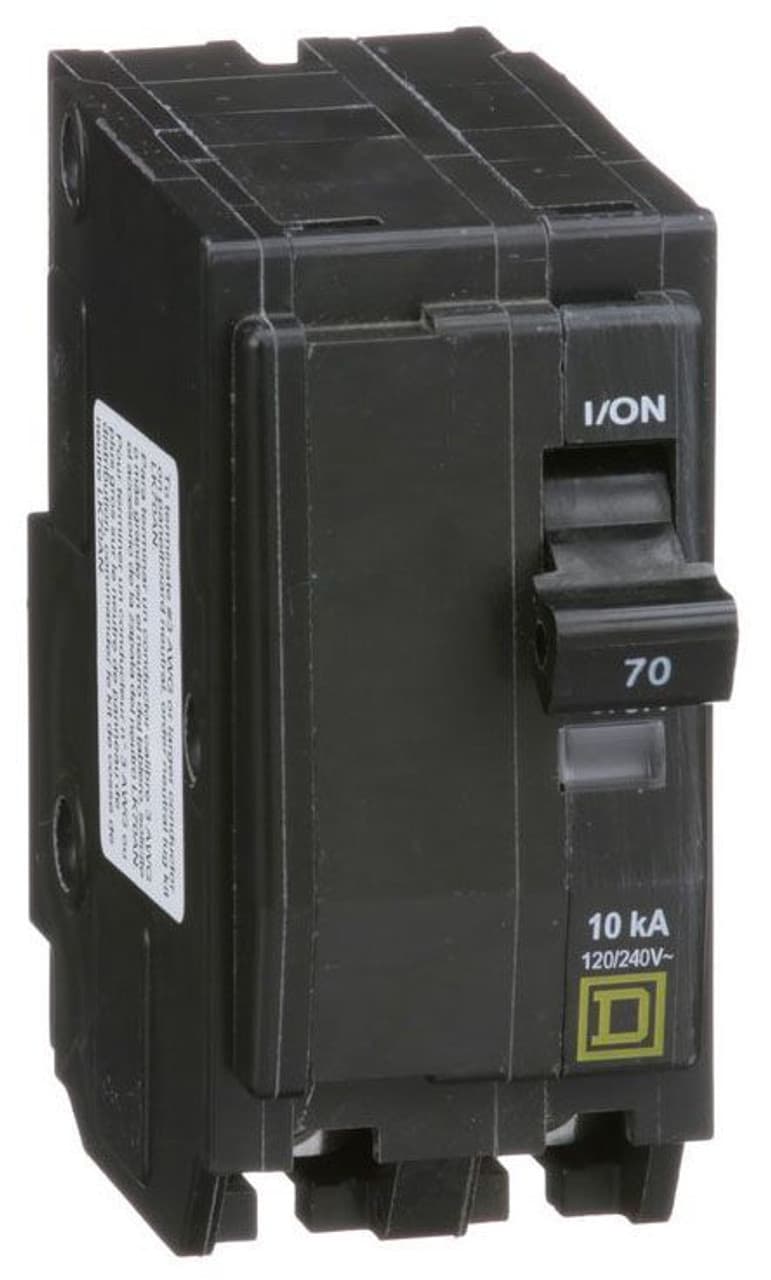

Square D by Schneider Electric QO270 is a Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a rated current of 70A and accommodates a plug-in connection type. This MCB is compatible with a rated voltage of 48Vdc and 120V/240V AC, supporting a cross-section of 8-2AWG (1 cable Al/Cu). It is a 2 Pole circuit breaker with a short circuit breaking rating of 10kA at 240Vac and 5kA at 48Vdc. The QO270 is equipped with box lugs type of terminals.

Product Details

  • Type:
    Common Trip
  • Approval:
    UL
  • TS PIK:
    597390
  • Wire Size:
    8 to 2 AWG (Copper/Aluminum)
  • Mounting:
    Plug-In
  • Used On:
    QO Load Center
  • Terminal Type:
    Box Lug
  • Interrupting Rating:
    5/10 kA
  • Poles:
    2
  • Volts:
    120/240 VAC 50/60 Hertz
  • Amps:
    32 A
  • Size:
    1.5 Inch Width x 2.91 Inch Depth x 3.11 Inch Height
  • UPC:
    785901400585
  • Shipping Weight:
    0.60 lbs.
  • Shipping Height:
    2.00 In.
  • Shipping Width:
    3.00 In.
  • Series:
    QO
  • Shipping Length:
    4.00 In.
  • Voltage Rating
    120/240 V AC 120 V AC 48 V DC
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz 5 kA 48 V DC
  • Number Of Panel Spaces
    2
  • Width
    1.5 in (38.10 mm)
  • Height
    3.12 in (79.25 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
  • Depth
    2.91 in (73.91 mm)
  • Wire Size
    AWG 8...AWG 2 copper or aluminium
  • Circuit Breaker Type
    Standard
  • Mounting Type
    Plug-in
  • Electrical Connection
    Box lugs
  • Number Of Poles
    2P
  • Current Rating
    70 A
  • Range
    QO
  • Product
    Miniature circuit-breaker
  • Ratings
    HACR rated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO270 on Powermatic Associates is $144.72. Order now.
