PK15GTACP Schneider Electric Industrial Automation Components

PK15GTACP on Powermatic Associates
Schneider Electric

Part#:PK15GTACP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

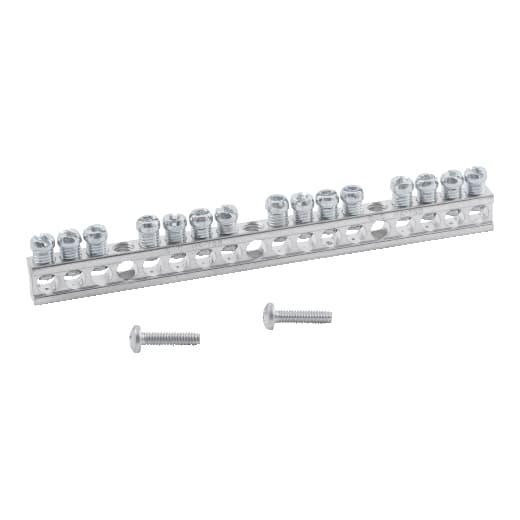

Square D by Schneider Electric PK15GTACP is a busbar designed for terminal bar functions.

Product Details

  • Tightening Torque
    30 lb.in Mounting screw 30 lb.in 20 lb.in, AWG 14...AWG 10, copper 20 lb.in, AWG 12...AWG 10, aluminium 35 lb.in, AWG 6...AWG 4 25 lb.in, AWG 8 25 lb.in, AWG 14...AWG 12, copper 25 lb.in, AWG 12...AWG 10, aluminium
  • Number Of Connectors
    15
  • Product Line
    QO
  • Product Type
    Bar
  • Net Weight
    1.92 lb(US) (0.87 kg)
  • Height
    0.437 in (11.10 mm)
  • Depth
    0.312 in (7.92 mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PK15GTACP Related Documents

Product Datasheet-1631030206317.pdfCatalog-1631030206345.pdfInstruction Sheet-1631030206329.pdf
