M9F53363 Schneider Electric Miniature Circuit Breakers (MCBs)

Schneider Electric

Part#:M9F53363

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

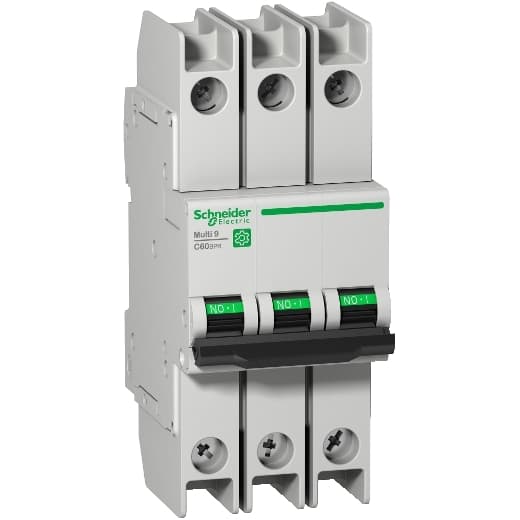

Schneider Electric M9F53363 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 3 Pole configuration and a rated current of 63A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. This MCB offers a short circuit breaking rating of 10kA AIR at 120Vac, 240Vac, and 125Vdc, with a rated voltage (AC) for phase-to-phase connections at 440 V. All three poles are protected, and it operates with a D tripping curve, compliant with UL489 standards.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Miniature Circuit Breakers (MCBs) that you can order at Powermatic Associates site. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the M9F53363 Schneider Electric price in the box on the right side or send a quick quote.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M9F53363 Description

Schneider Electric M9F53363 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 3 Pole configuration and a rated current of 63A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. This MCB offers a short circuit breaking rating of 10kA AIR at 120Vac, 240Vac, and 125Vdc, with a rated voltage (AC) for phase-to-phase connections at 440 V. All three poles are protected, and it operates with a D tripping curve, compliant with UL489 standards.

Manufacturer warranty
