M9F53340 Schneider Electric Industrial Automation Components

Name: M9F53340
Brand: Schneider Electric
Price: 395 USD
Availability: InStock

Part#:M9F53340

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Mar 14, 2025

Product description

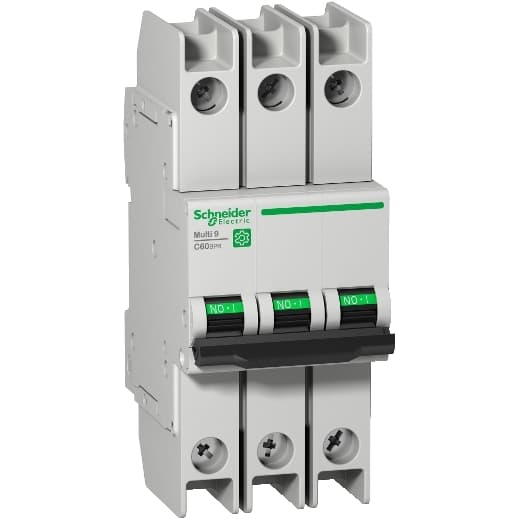

Schneider Electric M9F53340 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 3 Pole configuration and a rated current of 40A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. This MCB is compliant with UL489 standards, ensuring its capability to handle short circuit breaking ratings of 10kA AIR at 120Vac, 240Vac, and 125Vdc. It operates with a rated voltage (AC) for phase-to-phase connections at 440 V and protects all 3 poles with a D tripping curve.

Product Details

Breaking Capacity
6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 10 kA AIR 240 V AC UL 489 10 k
[Ics] Rated Service Breaking Capacity
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
Product Certifications
IEC CCC CSA UL
Standards
EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
Provision For Padlocking
Padlockable
Earth-Leakage Protection
Without
Connections - Terminals
Ring terminal top or bottom)
Electrical Durability
10000 cycles
Color
Gray
Mechanical Durability
20000 cycles
Width
2.13 in (54 mm)
9 Mm Pitches
6
Height
5.00 in (127 mm)
Local Signalling
ON/OFF indication
Contact Position Indicator
Yes
Tightening Torque
17.70 lbf.in (2 N.m) top or bottom
Depth
2.83 in (72 mm)
Mounting Support
DIN rail
Mounting Mode
Clip-on

Control Type

Toggle

[Ui] Rated Insulation Voltage

500 V AC EN/IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage

6 kVEN/IEC 60947-2

Magnetic Tripping Limit

12 x In +/- 20 % AC

Suitability For Isolation

Yes conforming to EN/IEC 60947-2

Curve Code

Network Type

Trip Unit Technology

Thermal-magnetic

Line Rated Current

40 A 77 °F (25 °C) EN/IEC 60947-2

Number Of Protected Poles

Poles Description

Device Application

Distribution

Device Short Name

C60BPR

Product Or Component Type

Miniature circuit-breaker

Range

Multi 9

Product Name

Multi 9 C60

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F53340 on Powermatic Associates is $395.00. Order now.
