LP1K0910JD Schneider Electric Industrial Automation Components
Part#:LP1K0910JD
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

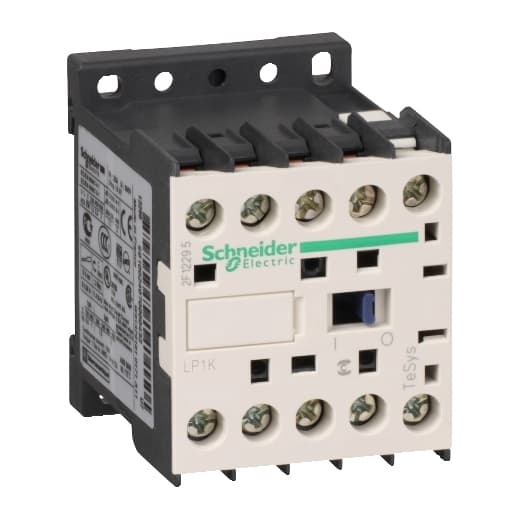

Schneider Electric LP1K0910JD is a magnetic contactor within the K sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 20A for AC-1 and 9A for 440Vac in AC-3. The net width of the part is 45 mm, and it offers a degree of protection of IP20. The control voltage (DC) ranges from 9.6-13.8Vdc, with a nominal value of 12Vdc. The rated operating voltage (Ue) is up to 690 V. This contactor includes 1 Normally Open (NO) auxiliary contact but does not have Normally Closed (NC) auxiliary contacts. It is capable of handling rated active power of 2.2kW at 220-230Vac, 4kW at 380-415Vac, 440Vac, 500Vac, and 660-690Vac, all in AC-3. The mechanical durability of the LP1K0910JD, at no load, is rated at 10,000,000 operations, and it supports a rated voltage (AC) phase-to-phase of 690 V.
Product Details
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
- [Ie] Rated Operational Current 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit 9 A<= 440 V AC AC-3 power circuit 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
- Utilisation Category AC-3 AC-4 AC-1
- Control Circuit Voltage Limits Operational: 0.8...1.15 Uc (at <50 °C) Drop-out 0.1...0.75 Uc 122 °F (50 °C))
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Mounting Support Rail Plate
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
- Contactor Application Resistive load Motor control
- Operating Time 30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening
- Net Weight 0.50 lb(US) (0.225 kg)
- Maximum Operating Rate 3600 cyc/h
- Height 2.28 in (58 mm)
- Width 1.77 in (45 mm)
- Insulation Resistance > 10 MOhm for signalling circuit
- Minimum Switching Current 5 mA signalling circuit
- Depth 2.24 in (57 mm)
- Minimum Switching Voltage 17 V signalling circuit
- Mechanical Durability 10 Mcycles
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Inrush Power In W 3 W 68 °F (20 °C))
- Hold-In Power Consumption In W 3 W 68 °F (20 °C)
- Overvoltage Category III
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Auxiliary Contacts Type Instantaneous 1 NO
- Auxiliary Contact Composition 1 NO
- Pole Contact Composition 3 NO
- Range TeSys
- Product Or Component Type Contactor
- Range Of Product TeSys K
- Device Short Name LP1K
- Poles Description 3P
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
