EGB34080SA Schneider Electric Industrial Automation Components

EGB34080SA on Powermatic Associates
Schneider Electric

Part#:EGB34080SA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Square D by Schneider Electric EGB34080SA is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 480 V AC. This MCB serves as an Equipment Protection Device (EPD) and Circuit Breaker (CB) with a shunt trip coil, offering short-circuit and overload protection functions. It is equipped with an aluminium lugs connection and supports a rated current of 80A across 3 poles. The cross-section compatibility ranges from 12 to 2/0 AWG. It has a short circuit breaking rating of 65kA at 120Vac and 240Vac, and 35kA at 480Y/277Vac. The trip unit is thermal-magnetic with protection settings at a trip unit rating of 2300A.

Product Details

  • Breaking Capacity
    35 kA 277 V AC 65 kA 240 V AC 35 kA 480Y/277 V AC 65 kA 120 V AC 65 kA 120/240 V AC
  • Tightening Torque
    34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • Protection Type
    Short-circuit Overload
  • AWG Gauge
    AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper
  • Net Weight
    4 lb(US) (1.81 kg)
  • Width
    3.92 in (99.57 mm)
  • Depth
    4.05 in (102.87 mm)
  • Device Composition
    Shunt trip
  • Height
    5.66 in (143.76 mm)
  • Breaking Capacity Code
    G
  • Trip Unit Technology
    Thermal-magnetic
  • Number Of Spaces Required
    4
  • Number Of Poles
    3
  • Circuit Breaker Application
    HACR rated
  • Product Destination
    NF panelboard
  • Number Of Spaces
    4
  • Local Signalling
    Trip indicator
  • Mounting Mode
    Bolt-on
  • Electrical Connection
    Lugs aluminium
  • Holding Current
    1000 A
  • Maximum Operating Voltage
    480Y/277 V AC
  • Line Rated Current
    80 A
  • Device Short Name
    EGB
  • Product Or Component Type
    Miniature circuit-breaker
  • Trip Unit Rating
    2300 A
  • Module Type
    E-Frame
  • Range Of Product
    125 A Frame EDB-EGB-EJB

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EGB34080SA on Powermatic Associates is $2,047.00. Order now.

EGB34080SA Related Documents

Catalog-1631035091322.pdfProduct Datasheet-1631035091316.pdfInstruction Sheet-1631035091324.pdf

Similar products from: Schneider Electric Industrial Automation Components

MG17466 on Powermatic Associates

MG17466

Schneider Electric

Schneider Electric MG17466 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. This 3-pole device is rated for a current of 15A and operates at a rated voltage (Ue) of 480V. It features a short circuit breaking rating of 10kA AIR at 240Vac and 5kA AIR at 480Y/277Vac. All three poles are protected, and it utilizes a C tripping curve.

2 in stock
RXZE2M114M on Powermatic Associates

RXZE2M114M

Schneider Electric

Schneider Electric RXZE2M114M is a plug-in socket within the RXZ sub-range designed for a rated current of 10 A and an operational ambient air temperature range of -40 to +55 °C. It features a degree of protection classified as IP20 and is equipped with connector type terminals. The socket is specified for a rated voltage (AC) of 250 V, phase-to-neutral.

8 in stock
XB5AW31B5 on Powermatic Associates

XB5AW31B5

Schneider Electric

Schneider Electric XB5AW31B5 is an illuminated flush push-button designed for automation applications, part of the XB5 range. This push-button features a plastic body and bezel with a round shape and a plain lens. It offers a degree of protection rated at IP66, making it suitable for use in environments where dust and water resistance are necessary. The push-button operates on a spring-return (impulse/momentary) mechanism and is equipped with integral LED illumination, with the light color being white. It has a diameter of 22 mm and is designed to work with a supply voltage of 24 V, accommodating both AC and DC sources. The XB5AW31B5 includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts for versatile connectivity options. The type of terminals provided for electrical connections is screw-clamp. This push-button operates within a network frequency of 50/60 Hz.

2 in stock
LA4KE1B on Powermatic Associates

LA4KE1B

Schneider Electric

Schneider Electric LA4KE1B is a suppressor module within the K sub-range, designed with a varistor and LED indicator for operation at 12-24Vac / 12-24Vdc. It features front clip-on mounting for ease of installation. This module functions primarily as a surge suppressor.

2 in stock
LC1F400 on Powermatic Associates

LC1F400

Schneider Electric

Schneider Electric LC1F400 - Contactor body,TeSys F,3P(3NO), AC-3, <=440V 1100A without coil

4 in stock
ZB5AV013 on Powermatic Associates

ZB5AV013

Schneider Electric

Schneider Electric ZB5AV013 is a head component designed for integral LED applications within the XB5 sub-range. This part features a plastic body and bezel, with a round shape and a plain lens. It has a diameter of 22 mm and provides white light. The ZB5AV013 is characterized by its degree of protection, being IP66, IP67, NEMA 4X, and NEMA 13 rated, indicating a high level of protection against dust, water, and other environmental conditions.

12 in stock

Manufacturer warranty

EGB34080SA Schneider Electric

$2,047.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$2,047.00

$2,047.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare EGB34080SA with other Industrial Automation Components products

Breaking Capacity

Tightening Torque

Protection Type

AWG Gauge

Net Weight

Width

Depth

Device Composition

Height

Breaking Capacity Code

Selected product

EGB34080SA
Backordered
EGB34080SA
Schneider Electric

Square D by Schneider Electric EGB34080SA is a Miniature Circuit Breaker (MCB) designed for bolt-on ...

Breaking Capacity35 kA 277 V AC 65 kA 240 V A...

Tightening Torque34.52 lbf.in (3.9 N.m) 0.00…...

Protection TypeShort-circuit Overload

AWG GaugeAWG 12...AWG 2/0 aluminium A...

Net Weight4 lb(US) (1.81 kg)

Width3.92 in (99.57 mm)

Depth4.05 in (102.87 mm)

Device CompositionShunt trip

Height5.66 in (143.76 mm)

Breaking Capacity CodeG

EDB34040
34 in stock
EDB34040
Schneider Electric

Square D by Schneider Electric EDB34040 is a Miniature Circuit Breaker (MCB) designed for bolt-on mo...

Breaking Capacity18 kA 277 V AC 25 kA 240 V A...

Tightening Torque-

Protection Type-

AWG GaugeAWG 12...AWG 2/0 aluminium A...

Net Weight-

Width-

Depth-

Device Composition-

Height-

Breaking Capacity Code-

BDF36015
4 in stock
BDF36015
Schneider Electric

Square D by Schneider Electric BDF36015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz...

Tightening Torque-

Protection Type-

AWG GaugeAWG 14...AWG 8 aluminium/cop...

Net Weight-

Width-

Depth-

Device Composition-

Height-

Breaking Capacity Code-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

Relevant products

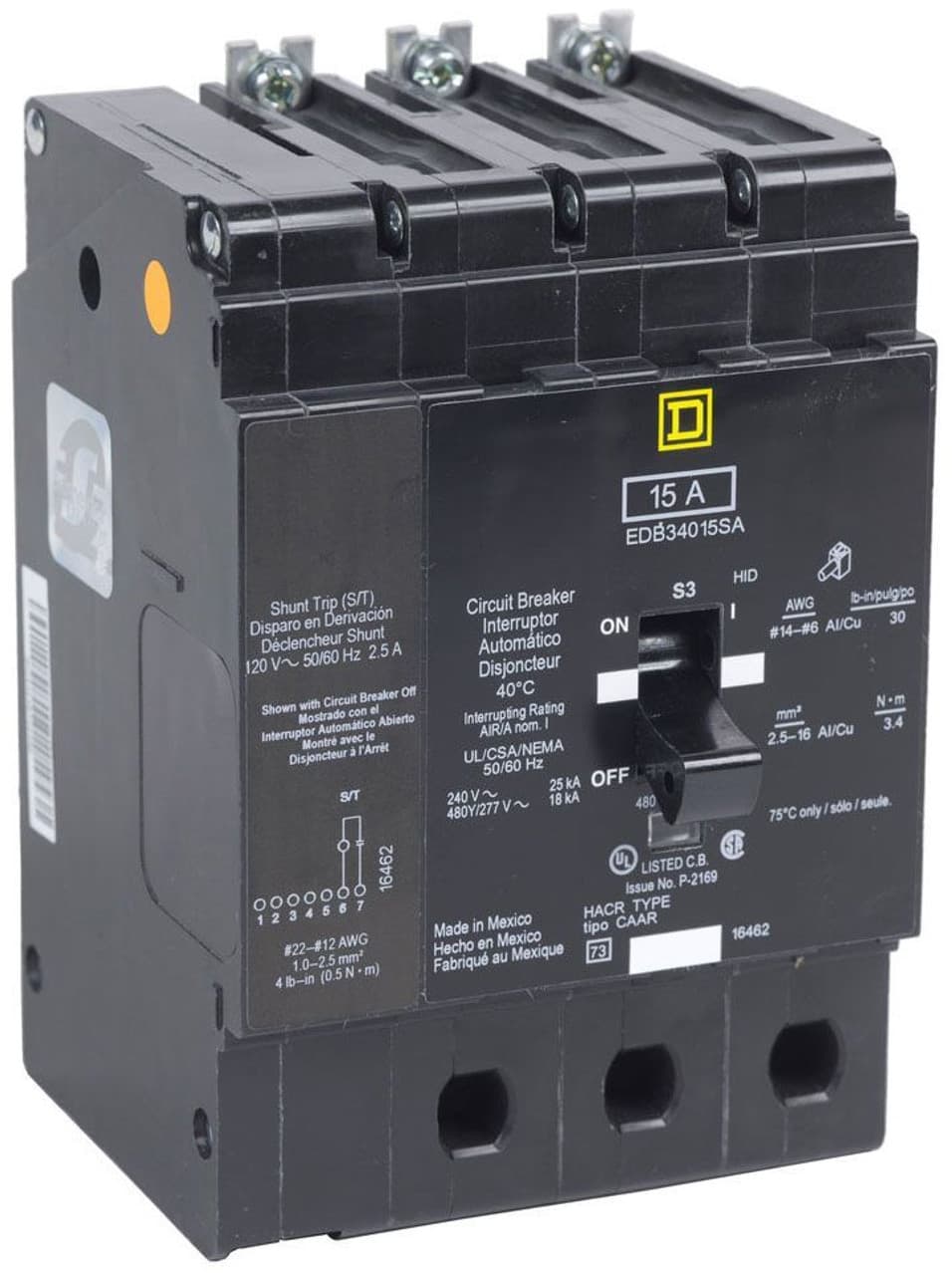

EGB34015SA on Powermatic Associates
