SCE-24HS2508SSLP Saginaw Control Electrical Enclosures

SCE-24HS2508SSLP on Powermatic Associates
Saginaw Control

Part#:SCE-24HS2508SSLP

Manufacturer:Saginaw Control

Category:Electrical Enclosures

Product Lifecycle:Active

Product description

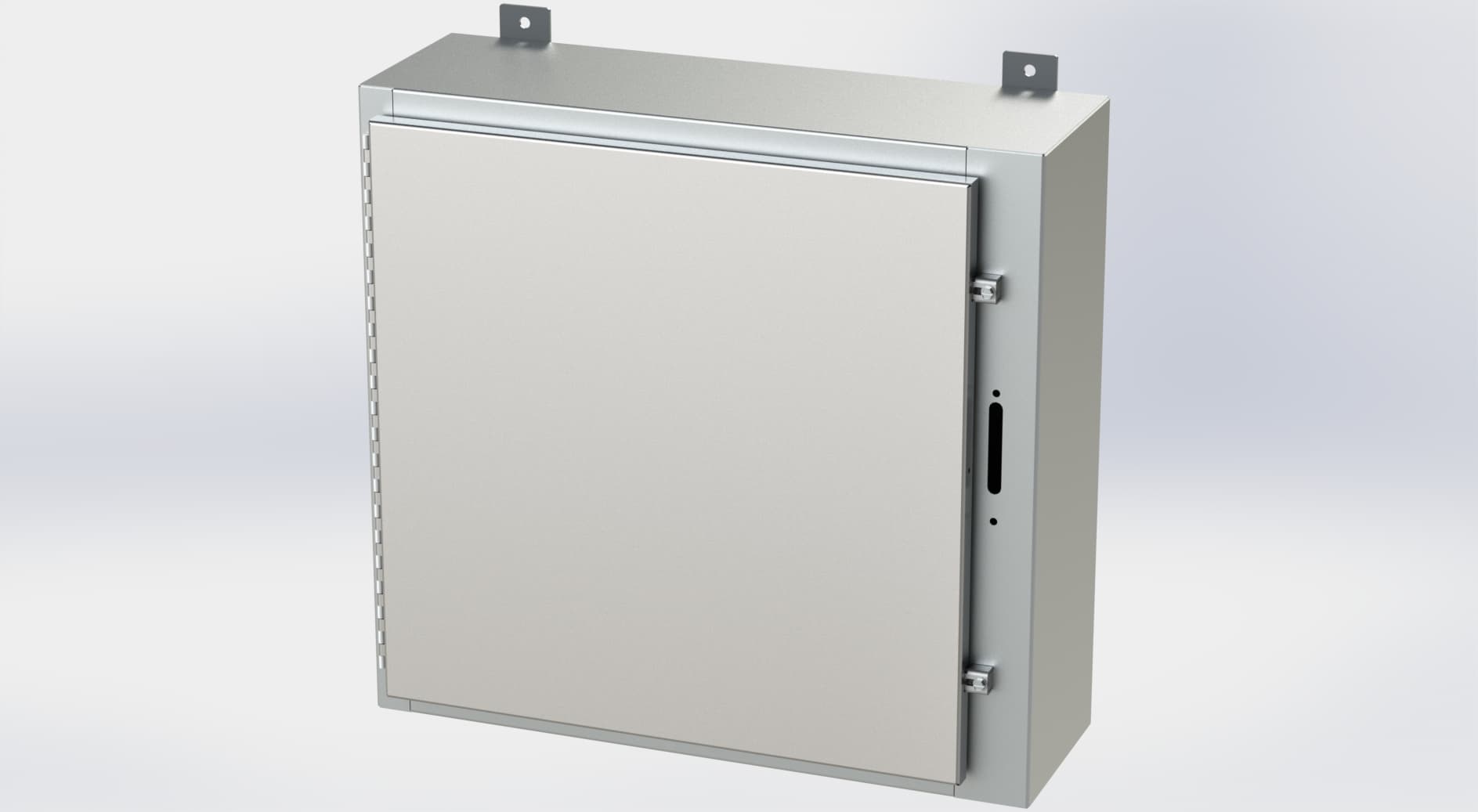

S.S. HS LP Enclosure, Height:24.00", Width:25.38", Depth:8.00", #4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Product Details

  • Height
    24.00"
  • Industry Standards
    NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66
  • Finish
    #4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.
  • Width
    25.38"
  • Construction
    0.075 In. stainless steel Type 304. Seams continuously welded and ground smooth. Stainless steel continuous hinge. Flange trough collar around all sides of door opening. Interior print pocket. Pour in place oil & water resistant gasket Ground studs on doo
  • Depth
    8.00"

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SCE-24HS2508SSLP Related Documents

Saginaw - CAD files-1630958806632.zip
