DC3332206TP SAB Tray Cables
Part#:DC3332206TP
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

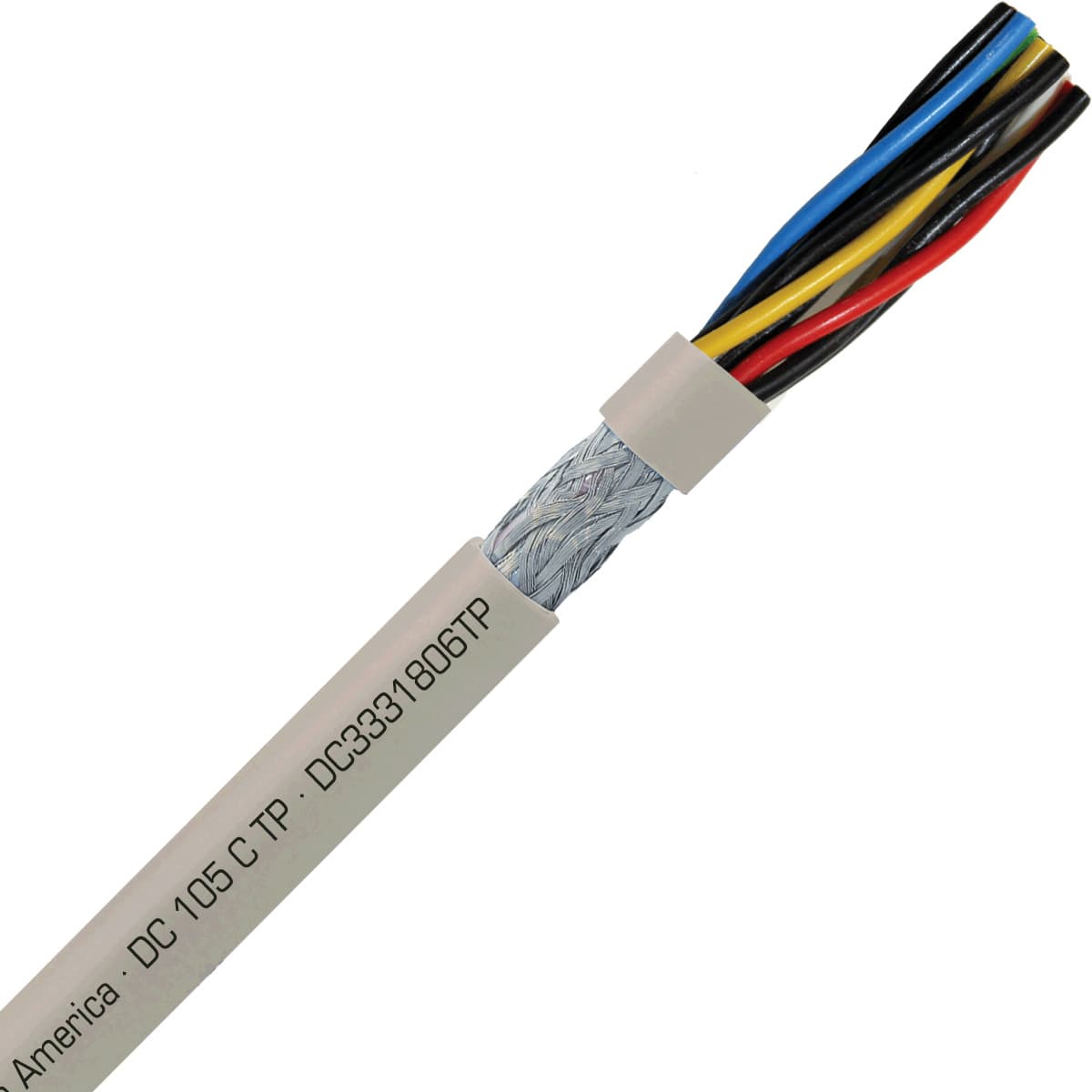

DC 105 C TP - 22 AWG/6pr, shielded flexible oil resistant data pair cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the DC3332206TP SAB price in the box on the right side or send a quick quote.
Product Details
- Color Grayish Tan
- Weight 40.82 g
- Chemical Resistant NO
- Oil Resistant No
- UV Resistant NO
- Halogen Free NO
- Submersible NO
- Direct Burial NO
- Movement Type Stationary/Flexible
- Application Data
- Gauge 22 AWG
- Pair count 6
- Number of conductors 12
- Cable configuration 22 AWG (≈ 7/30)/6pr
- Stranding type tinned copper fine strands
- Insulation type Semi-rigid PVC
- Shielded Yes
- Voltage 300
- Approvals UL PLTC/ITC, UL CMG, CSA AWM, CSA CMG, CE, RoHS
- RoHS YES
- Temperature range -25°C to +105°C
- Outside diameter (OD) 0.358 in
- UOM ft
- CSA Certification YES
- UL Certification YES
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
DC3332206TP Description
SAB DC3332206TP Tray Cable is part of DC 105 C TP product family, and is designed for Data applications. This cable is 22 AWG with 12 conductors, and shielded 22 AWG (≈ 7/30)/6pr cable configuration. Featuring Grayish Tan color jacket, Semi-rigid PVC insulation, and tinned copper fine strands stranding. It has 0.358 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Data cable can operate in -25°C to +105°C temperature range, it is and has following approvals: UL PLTC/ITC, UL CMG, CSA AWM, CSA CMG, CE, RoHS. This cable is an excellent choice for Data applications.
Related documents DC3332206TP Specs
