93330803 SAB Tray Cables

93330803 on Powermatic Associates
SAB

Part#:93330803

Manufacturer:SAB

Category:Tray Cables

Product Lifecycle:Active

In-stock parts: 552

Dec 21, 2024

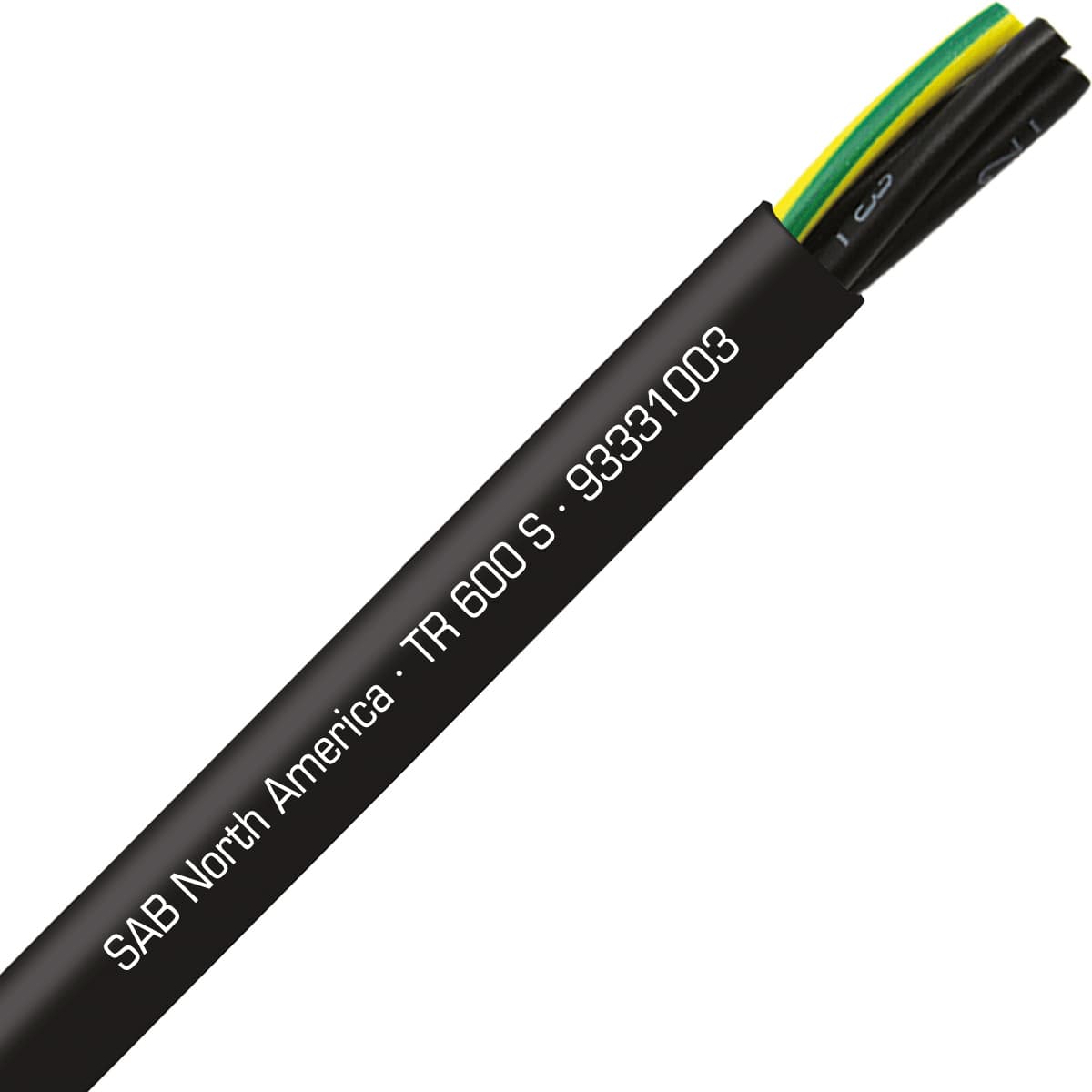

TR 600 S - 8 AWG/3c, oil resistant flexible exposed run tray cable, UL, CSA, WTTC, NFPA 79, CE RoHS

About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 93330803 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Black
  • Weight
    140.16 g
  • Chemical Resistant
    NO
  • Oil Resistant
    Yes
  • UV Resistant
    YES
  • Halogen Free
    NO
  • Submersible
    YES
  • Direct Burial
    YES
  • Movement Type
    Stationary/Flexible
  • Application
    Control, Power
  • Gauge
    8 AWG
  • Number of conductors
    3
  • Cable configuration
    8 AWG/3c
  • Stranding type
    bare copper strands, class K
  • Insulation type
    PVC/Nylon
  • Shielded
    No
  • Voltage
    600
  • Approvals
    UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC-TC, CSA CIC, CSA AWM, CE, RoHS
  • RoHS
    YES
  • Temperature range
    -40°C to +105°C
  • Outside diameter (OD)
    0.662 in
  • UOM
    ft
  • CSA Certification
    YES
  • UL Certification
    YES
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

93330803 Description

SAB 93330803 Tray Cable is part of TR 600 S product family, and is designed for Control, Power applications. This cable is 8 AWG with 3 conductors, and 8 AWG/3c cable configuration. Featuring Black color jacket, PVC/Nylon insulation, and bare copper strands, class K stranding. It has 0.662 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, Submersible, rated for direct burial, and has following approvals: UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC-TC, CSA CIC, CSA AWM, CE, RoHS. This cable is an excellent choice for Control, Power applications.

Related documents 93330803 Specs

93330803 TR_600_S.pdf
