93331602 SAB Tray Cables
Part#:93331602
Manufacturer:SAB
Product Lifecycle:Active
In-stock parts: 958
Sep 28, 2024

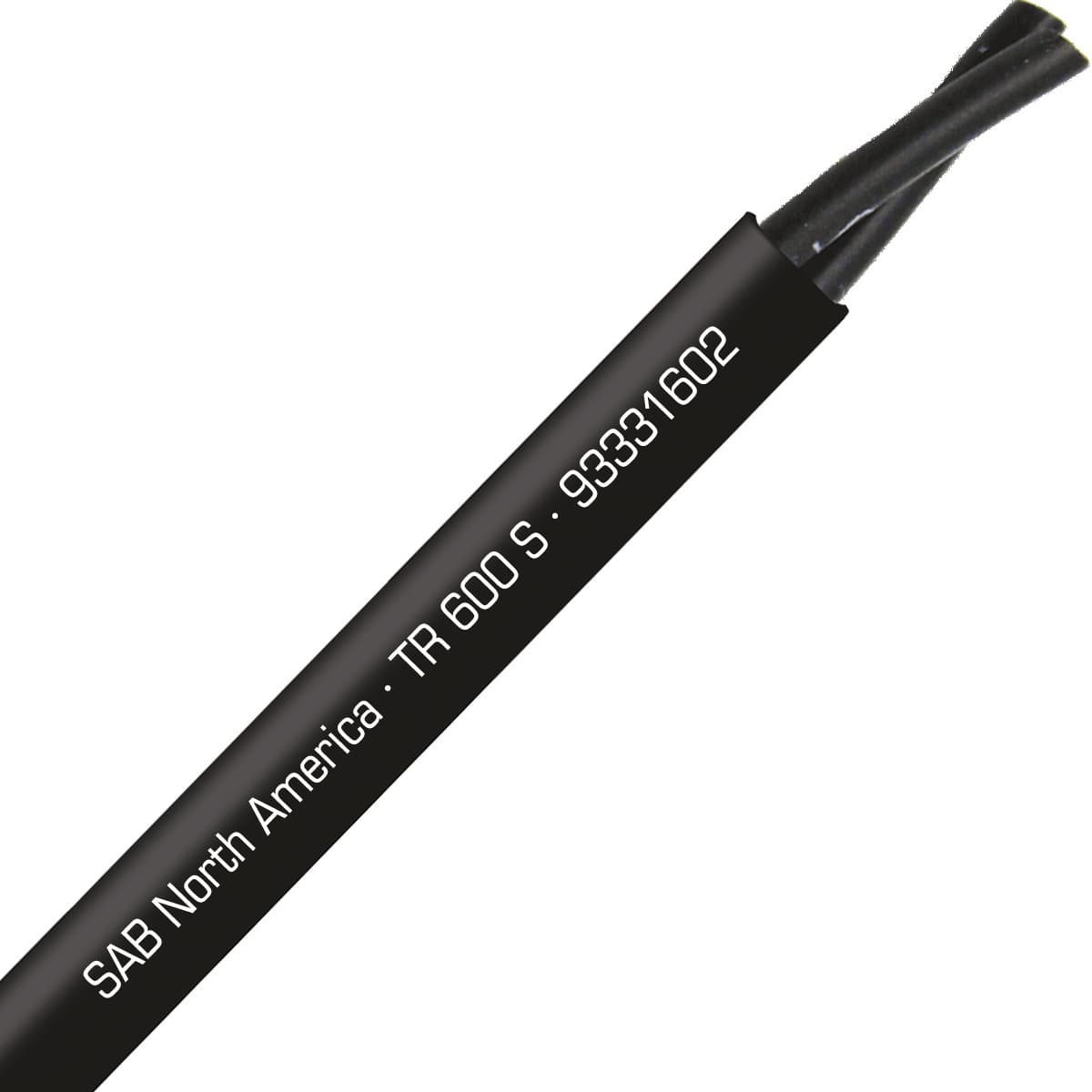

TR 600 S - 16 AWG/2c, oil resistant flexible exposed run tray cable, UL, CSA, WTTC, NFPA 79, CE RoHS
About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 93331602 SAB price in the box on the right side or send a quick quote.
Product Details
- Gauge 16 AWG
- Color Black
- Application Control, Power
- Cable configuration 16 AWG/2c
- Shielded No
- Outside diameter (OD) 0.306 in
- Oil Resistant Yes
- Number of conductors 2
- CSA Certification YES
- Chemical Resistant NO
- Submersible YES
- Insulation type PVC/Nylon
- Voltage 600
- UV Resistant YES
- Direct Burial YES
- Approvals UL MTW, UL WTTC, UR AWM, CSA CIC-TC, CSA CIC, CSA AWM, CE, RoHS
- Movement Type Stationary/Flexible
- Temperature range -40°C to +105°C
- UL Certification YES
- Weight 23.59 g
- Stranding type bare copper strands, class K
- CE Certification YES
- Halogen Free NO
- RoHS YES
- UOM ft
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
93331602 Description
SAB 93331602 Tray Cable is part of TR 600 S product family, and is designed for Control, Power applications. This cable is 16 AWG with 2 conductors, and 16 AWG/2c cable configuration. Featuring Black color jacket, PVC/Nylon insulation, and bare copper strands, class K stranding. It has 0.306 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, Submersible, rated for direct burial, and has following approvals: UL MTW, UL WTTC, UR AWM, CSA CIC-TC, CSA CIC, CSA AWM, CE, RoHS. This cable is an excellent choice for Control, Power applications.
Related documents 93331602 Specs
