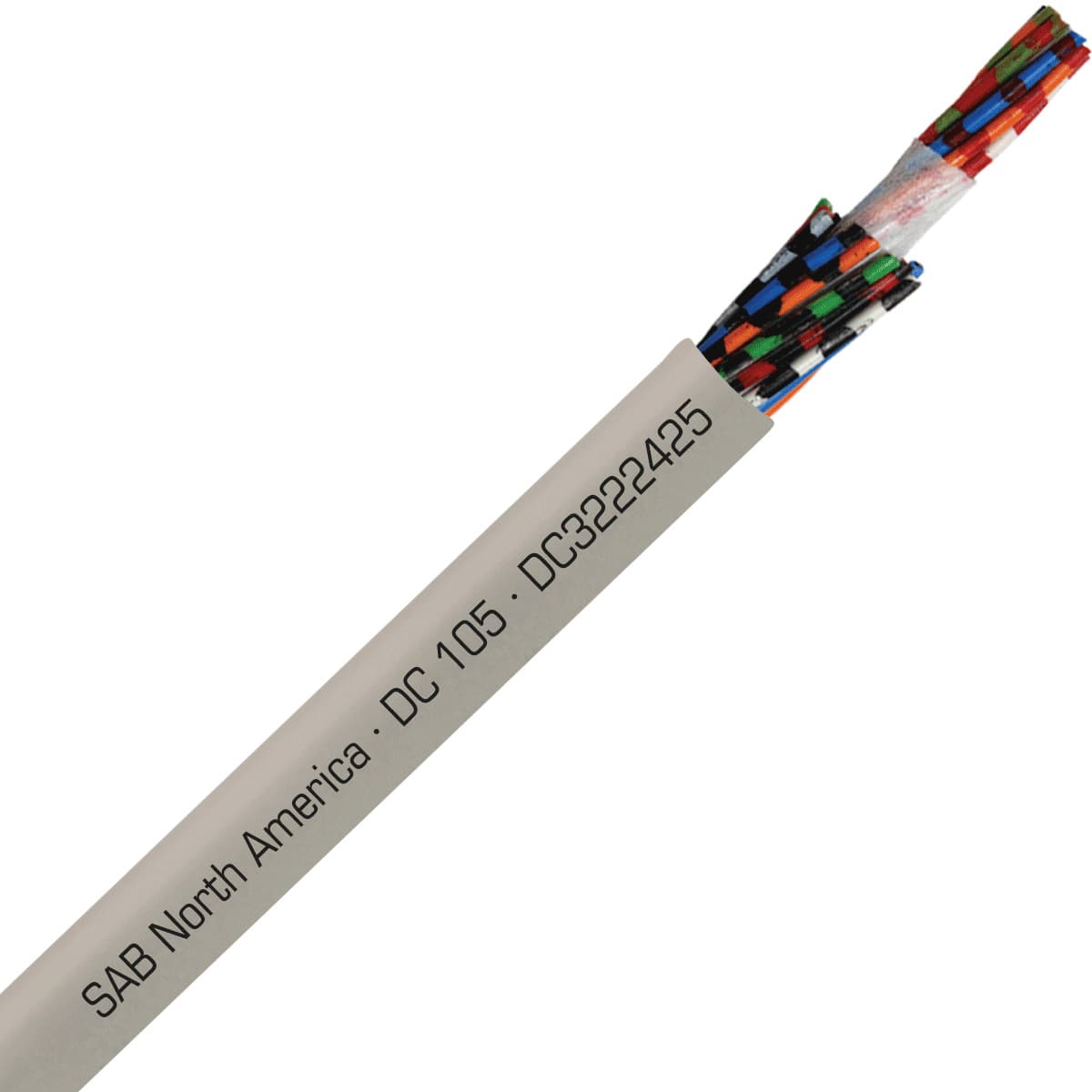

DC3222425 SAB Tray Cables

SAB DC3222425 DC 105 - 24 AWG/25c, flexible oil resistant data cable, UL, CSA, CE, RoHS
SAB

Part#:DC3222425

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

DC 105 - 24 AWG/25c, flexible oil resistant data cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the DC3222425 SAB price in the box on the right side or send a quick quote.

Product Details

  • Gauge
    24 AWG
  • Approvals
    UL PLTC/ITC, UL CMG, CSA AWM, CSA CMG, CE, RoHS
  • UOM
    ft
  • Stranding type
    tinned copper fine strands
  • Movement Type
    Stationary/Flexible
  • Temperature range
    -25°C to +105°C
  • Halogen Free
    NO
  • Application
    Data
  • Number of conductors
    25
  • CE Certification
    YES
  • Chemical Resistant
    NO
  • Submersible
    NO
  • Color
    Grayish Tan
  • CSA Certification
    YES
  • Oil Resistant
    No
  • Shielded
    No
  • Cable configuration
    24 AWG (≈ 7/32)/25c
  • Voltage
    300
  • UV Resistant
    NO
  • Direct Burial
    NO
  • UL Certification
    YES
  • RoHS
    YES
  • Weight
    39.01 g
  • Insulation type
    Semi-rigid PVC
  • Outside diameter (OD)
    0.343 in

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DC3222425 Description

SAB DC3222425 Tray Cable is part of DC 105 product family, and is designed for Data applications. This cable is 24 AWG with 25 conductors, and 24 AWG (≈ 7/32)/25c cable configuration. Featuring Grayish Tan color jacket, Semi-rigid PVC insulation, and tinned copper fine strands stranding. It has 0.343 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Data cable can operate in -25°C to +105°C temperature range, it is and has following approvals: UL PLTC/ITC, UL CMG, CSA AWM, CSA CMG, CE, RoHS. This cable is an excellent choice for Data applications.

Related documents DC3222425 Specs

DC3222425 DC_105.pdf
