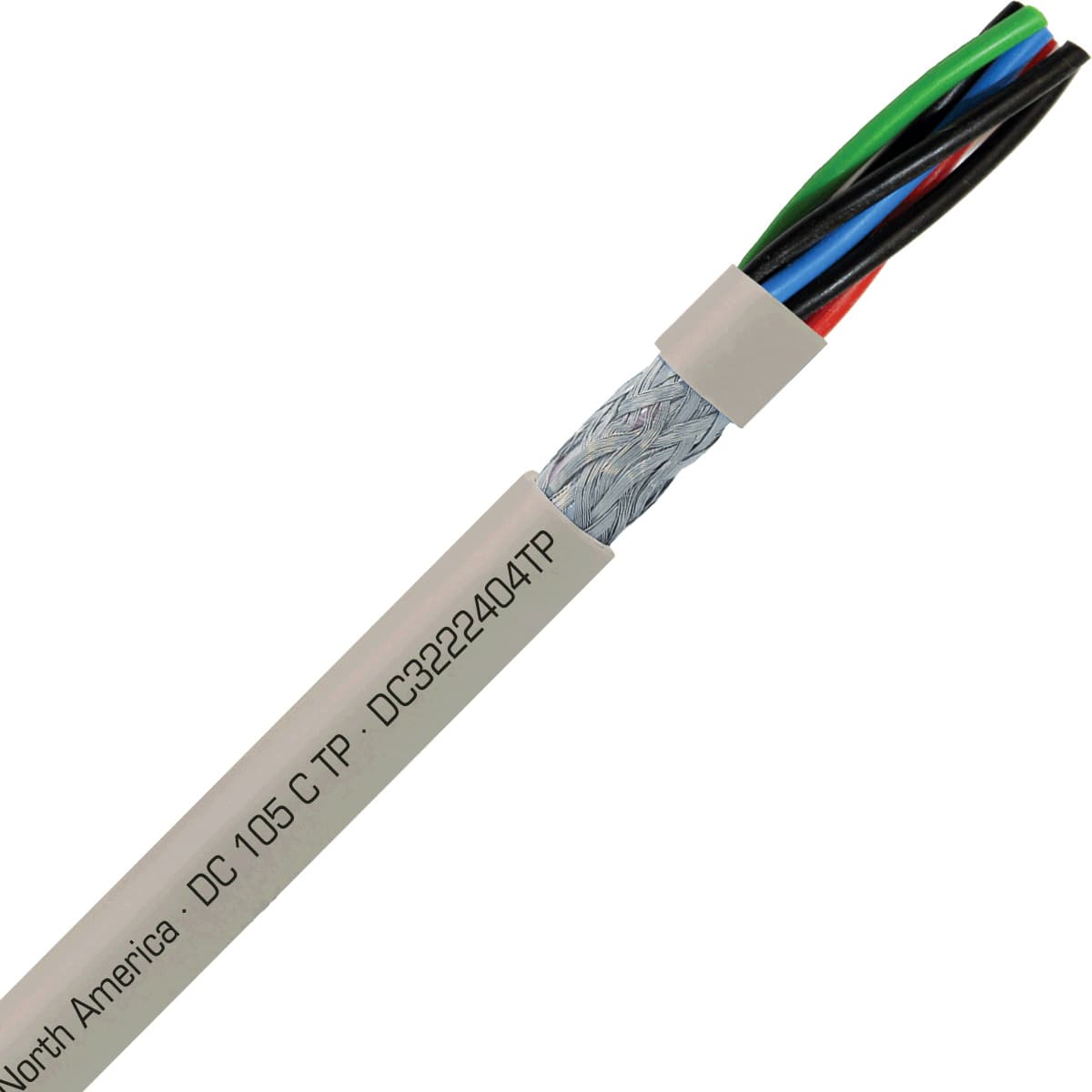

DC3222404TP SAB Tray Cables
Part#:DC3222404TP
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!
DC 105 C TP - 24 AWG/4pr, shielded flexible oil resistant data pair cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the DC3222404TP SAB price in the box on the right side or send a quick quote.
Product Details
- Halogen Free NO
- Movement Type Stationary/Flexible
- Oil Resistant No
- Submersible NO
- Color Grayish Tan
- UV Resistant NO
- Application Data
- Outside diameter (OD) 0.292 in
- UL Certification YES
- Gauge 24 AWG
- Temperature range -25°C to +105°C
- UOM ft
- Chemical Resistant NO
- Voltage 300
- Number of conductors 8
- RoHS YES
- Direct Burial NO
- Pair count 4
- Insulation type Semi-rigid PVC
- Weight 25.85 g
- Stranding type tinned copper fine strands
- CSA Certification YES
- Cable configuration 24 AWG (≈ 7/32)/4pr
- Shielded Yes
- CE Certification YES
- Approvals UL PLTC/ITC, UL CMG, CSA AWM, CSA CMG, CE, RoHS
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
DC3222404TP Description
SAB DC3222404TP Tray Cable is part of DC 105 C TP product family, and is designed for Data applications. This cable is 24 AWG with 8 conductors, and shielded 24 AWG (≈ 7/32)/4pr cable configuration. Featuring Grayish Tan color jacket, Semi-rigid PVC insulation, and tinned copper fine strands stranding. It has 0.292 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Data cable can operate in -25°C to +105°C temperature range, it is and has following approvals: UL PLTC/ITC, UL CMG, CSA AWM, CSA CMG, CE, RoHS. This cable is an excellent choice for Data applications.
Related documents DC3222404TP Specs
