3051234 SAB Data and Sensor Cables

3051234 on Powermatic Associates
SAB

Part#:3051234

Manufacturer:SAB

Category:Data and Sensor Cables

Product Lifecycle:Active

Product description

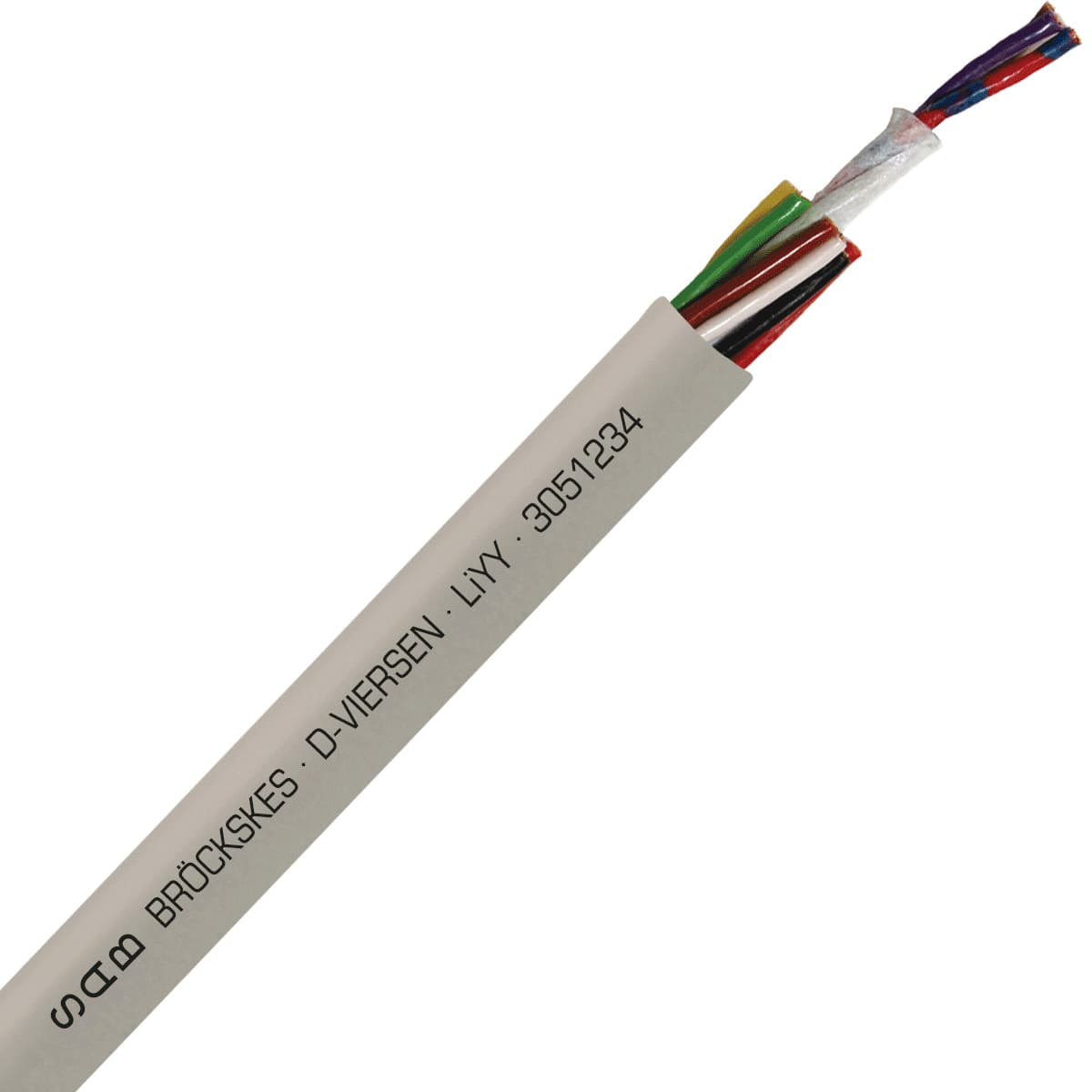

LiYY - 22 AWG/12c, multi-conductor signal and control PVC cable with DIN color code

Product Details

  • Color
    Grayish Tan
  • Weight
    25.40 g
  • Chemical Resistant
    YES
  • Oil Resistant
    Yes
  • UV Resistant
    NO
  • Halogen Free
    NO
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Stationary/Flexible
  • Application
    Power
  • Gauge
    22 AWG
  • Number of conductors
    12
  • Cable configuration
    22 AWG (≈ 7/30)/12c
  • Stranding type
    bare copper, fine strands
  • Insulation type
    PVC
  • Shielded
    No
  • Voltage
    300
  • Approvals
    CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -30°C to +70°C
  • Outside diameter (OD)
    0.287 in
  • UOM
    ft
  • CSA Certification
    NO
  • UL Certification
    NO
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

SAB 3051234 Data and Sensor Cable is part of LiYY product family, and is designed for Power applications. This cable is 22 AWG with 12 conductors, and 22 AWG (≈ 7/30)/12c cable configuration. Featuring Grayish Tan color jacket, PVC insulation, and bare copper, fine strands stranding. It has 0.287 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Power cable can operate in -30°C to +70°C temperature range, it is chemical resistant, oil resistant, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Power applications.
