3051214 SAB Data and Sensor Cables
Part#:3051214
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

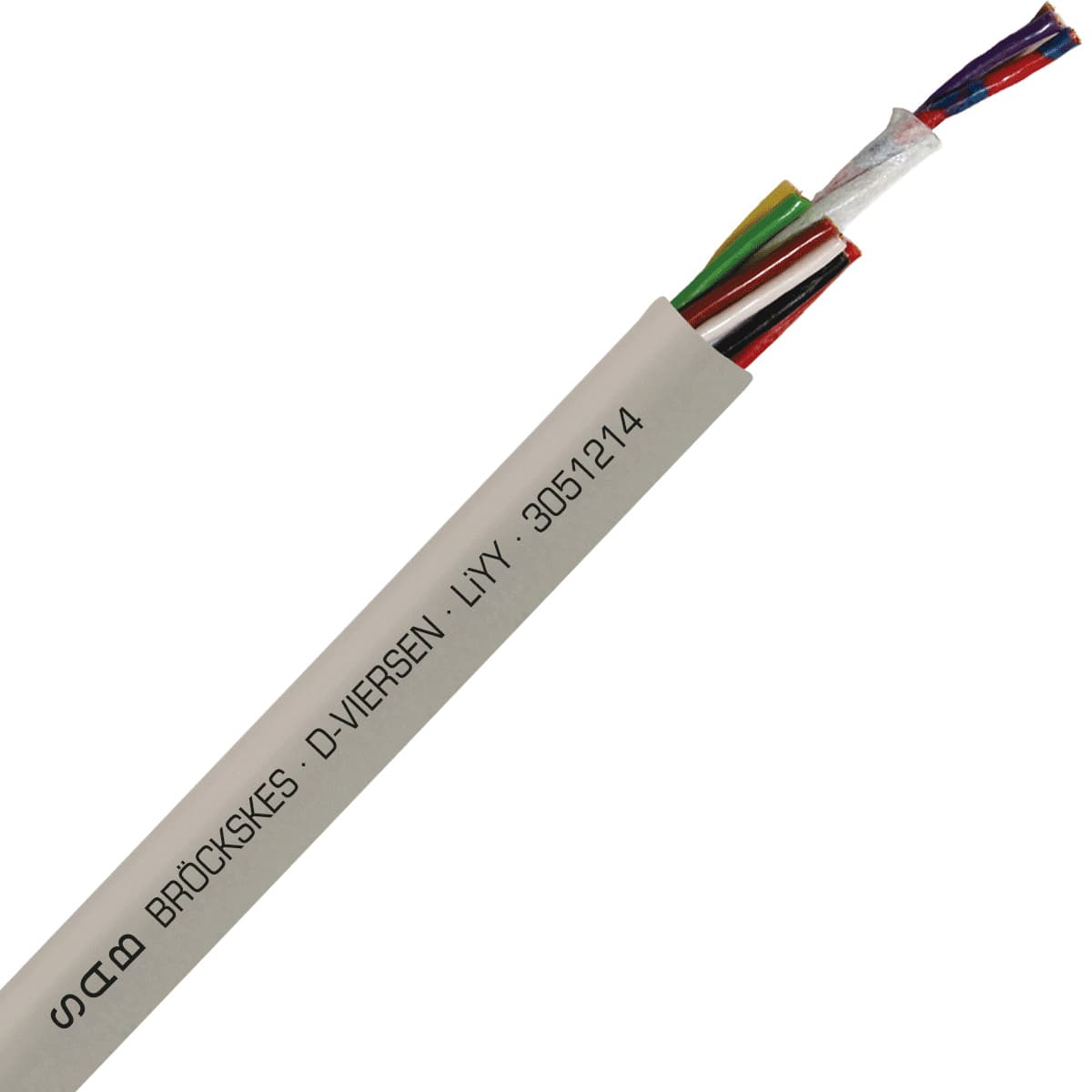

LiYY - 26 AWG/12c, multi-conductor signal and control PVC cable with DIN color code
About the manufacturer: SAB is one of the manufacturers that offers Data and Sensor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 3051214 SAB price in the box on the right side or send a quick quote.
Product Details
- Stranding type bare copper, fine strands
- Shielded No
- Temperature range -30°C to +70°C
- CE Certification YES
- Oil Resistant Yes
- Direct Burial NO
- Weight 11.79 g
- Movement Type Stationary/Flexible
- Cable configuration 26 AWG (≈ 18/38)/12c
- Insulation type PVC
- RoHS YES
- CSA Certification NO
- Number of conductors 12
- Voltage 300
- Outside diameter (OD) 0.209 in
- Halogen Free NO
- Gauge 26 AWG
- UV Resistant NO
- Application Power
- Color Grayish Tan
- UOM ft
- Chemical Resistant YES
- Submersible NO
- Approvals CE, EAC, RoHS
- UL Certification NO
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
3051214 Description
SAB 3051214 Data and Sensor Cable is part of LiYY product family, and is designed for Power applications. This cable is 26 AWG with 12 conductors, and 26 AWG (≈ 18/38)/12c cable configuration. Featuring Grayish Tan color jacket, PVC insulation, and bare copper, fine strands stranding. It has 0.209 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Power cable can operate in -30°C to +70°C temperature range, it is chemical resistant, oil resistant, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Power applications.
Related documents 3051214 Specs
