SAB

Part#:17874431

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

CATLine CAT 7A RT - 24 AWG/4pr, Shielded halogen-free torsional CAT 7A ethernet cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Ethernet Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 17874431 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Green
  • Weight
    29.87 g
  • Chemical Resistant
    NO
  • Oil Resistant
    Yes
  • UV Resistant
    NO
  • Halogen Free
    YES
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Torsional
  • Application
    Data
  • Gauge
    24 AWG
  • Pair count
    4
  • Number of conductors
    8
  • Cable configuration
    24 AWG (≈ 7/34)/4pr
  • Stranding type
    bare copper, fine strands
  • Insulation type
    Special Polymer
  • Shielded
    Yes
  • Voltage
    90
  • Approvals
    UR AWM, CSA AWM, CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -40°C to +80°C
  • Outside diameter (OD)
    0.366 in
  • UOM
    ft
  • CSA Certification
    YES
  • UL Certification
    YES
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

17874431 Description

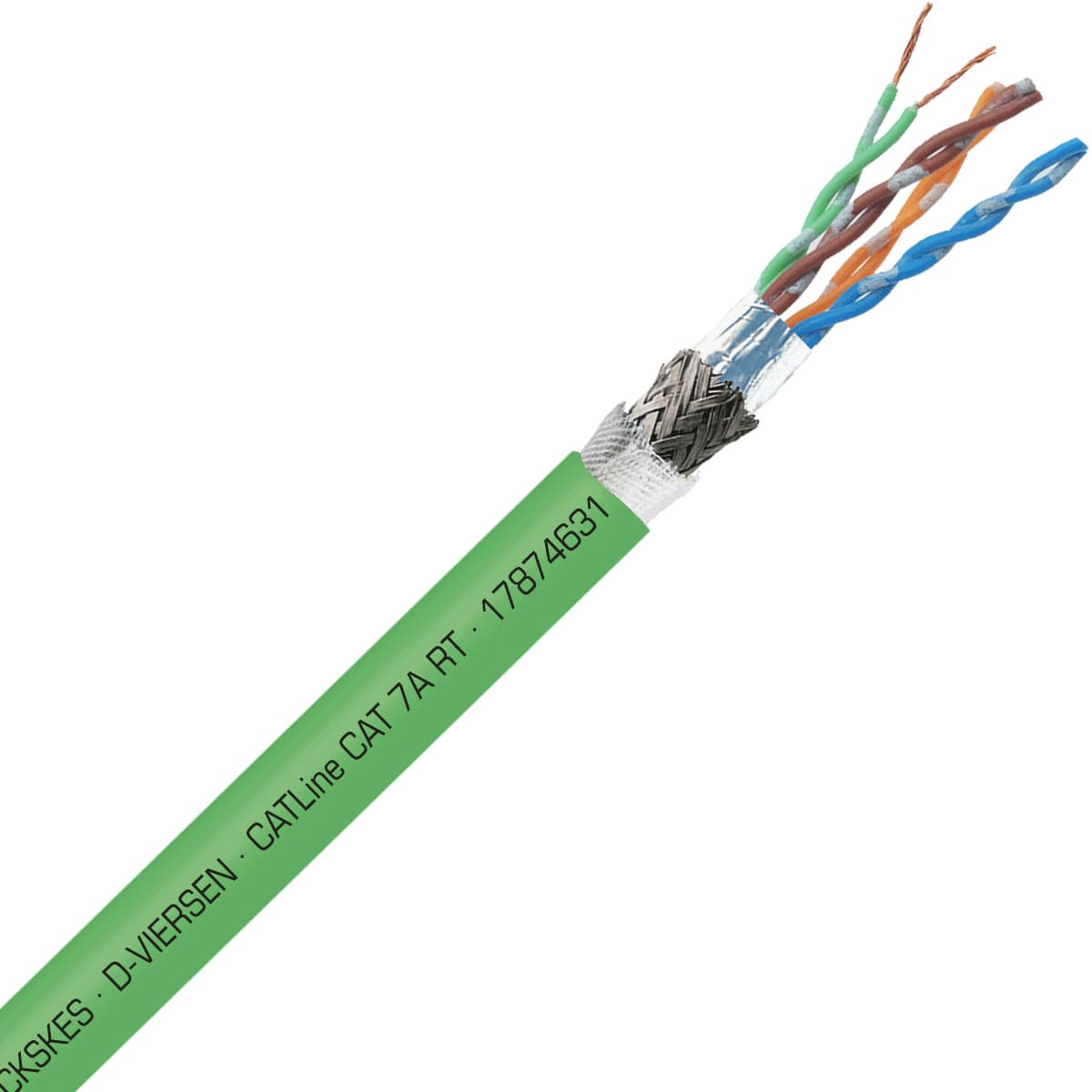

SAB 17874431 Ethernet Cable is part of CATLine CAT 7A RT product family, and is designed for Data applications. This cable is 24 AWG with 8 conductors, and shielded 24 AWG (≈ 7/34)/4pr cable configuration. Featuring Green color jacket, Special Polymer insulation, and bare copper, fine strands stranding. It has 0.366 in OD, constructed to support Torsional movement type, and rated for 90 volts. This Data cable can operate in -40°C to +80°C temperature range, it is oil resistant, Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Data applications.

Related documents 17874431 Specs

17874431 CATLine_CAT_7A_S-7A_RT.pdf
