7671325 SAB Multiconductor Cables

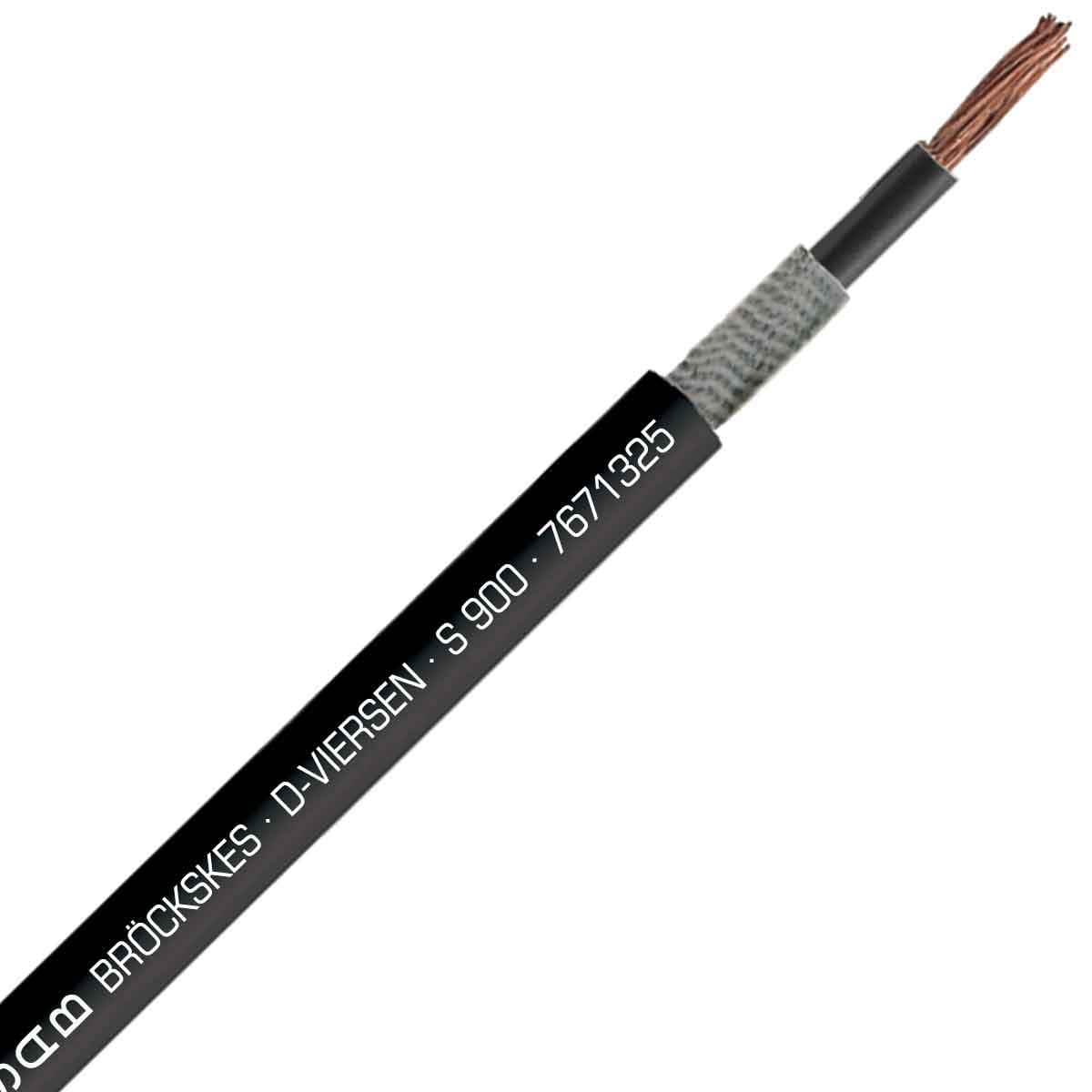

SAB 7671325 S 900 - 14 AWG/1c, oil resistant PVC continuous flex single core wire, UL, CSA, CE, RoHS
SAB

Part#:7671325

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

S 900 - 14 AWG/1c, oil resistant PVC continuous flex single core wire, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Multiconductor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 7671325 SAB price in the box on the right side or send a quick quote.

Product Details

  • Weight
    16.78 g
  • Submersible
    NO
  • Number of conductors
    1
  • Oil Resistant
    Yes
  • Gauge
    14 AWG
  • Shielded
    No
  • Halogen Free
    NO
  • Application
    Control, Power
  • UV Resistant
    YES
  • Movement Type
    Continuous Flex
  • Cable configuration
    14 AWG (≈ 140/34)/1c
  • Chemical Resistant
    NO
  • Direct Burial
    NO
  • Stranding type
    bare copper strands, class 6
  • Color
    Black
  • Temperature range
    +40°C to +90°C
  • CE Certification
    YES
  • Approvals
    UR AWM, CSA AWM, CE, EAC, RoHS
  • UL Certification
    YES
  • UOM
    ft
  • RoHS
    YES
  • CSA Certification
    YES
  • Outside diameter (OD)
    0.228 in
  • Voltage
    600

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

7671325 Description

SAB 7671325 Continuous Flex Cable is part of S 900 product family, and is designed for Control, Power applications. This cable is 14 AWG with 1 conductors, and 14 AWG (≈ 140/34)/1c cable configuration. Featuring Black color jacket, and bare copper strands, class 6 stranding. It has 0.228 in OD, constructed to support Continuous Flex movement type, and rated for 600 volts. This Control, Power cable can operate in +40°C to +90°C temperature range, it is oil resistant, UV resistand, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.

Related documents 7671325 Specs

7671325 S_900.pdf
