ST-IPM-6350 Red Lion Industrial Automation Components

ST-IPM-6350 on Powermatic Associates
Red Lion

Part#:ST-IPM-6350

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

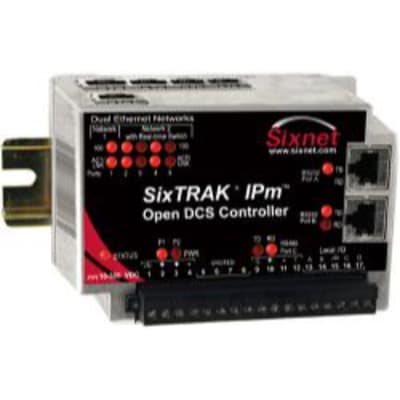

Red Lion ST-IPM-6350 is an Industrial Remote Terminal Unit (RTU) within the IPm sub-range, designed for automation and control applications. It is constructed from UL 94V-0 materials, ensuring compliance with stringent safety standards. This unit features a variety of connection options including 5 RJ45 connectors for Ethernet 10/100BaseTX with auto-detecting capabilities, 2 RJ45 ports for RS-232, and terminal block connections for RS-485. It operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems, and is designed for DIN rail mounting, facilitating easy installation. The ST-IPM-6350 can operate in ambient air temperatures ranging from -40 to +70 degrees Celsius. It boasts a memory capacity of 128MB FLASH, 2MB NVRAM, and 64MB DRAM, and offers an IP20 degree of protection. Communication protocols supported include RS-232, RS-485, Ethernet, Modbus TCP, and DNP3, with a connection capacity of up to 16000 Sixnet nodes, 247 Modbus nodes, and 640 local I/O's. At its core, the unit is powered by an Industrial PowerPC 32-bit processor and runs on an embedded Linux operating system.

Product Details

  • Memory capacity
    128MB (FLASH) 2MB (NVRAM) 64MB (DRAM)
  • Degree of protection
    IP20
  • Mounting mode
    DIN rail Mounting plate
  • Equivalent to
    STIPM6350
  • Programming languages
    Sixnet ISaGRAF (IEC61131 compliant language) High level C programming (Linux open software) Ladder diagram (LD) / Relay symbol language Flow charting SFC
  • Operating System (OS)
    Linux (embedded)
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc)
  • Material
    UL 94V-0 materials
  • Order code / Manufacturer SKU
    ST-IPM-6350
  • Ambient air temperature for operation
    -40...+70 °C
  • Secondary brand
    Sixnet
  • Communication protocol
    RS-232 RS-485 Ethernet Modbus TCP DNP3
  • Processor type
    Industrial PowerPC 32-bit processor
  • Main function
    RTU (Remote Terminal Unit)
  • Primary brand
    Red Lion
  • Sub-range name
    IPm
  • Connection capacity
    16000 Sixnet nodes 247 Modbus nodes 640 local I.O.'s
  • Connection type
    5 x RJ45 connectors (Ethernet) 10/100BaseTX (auto-detecting) 2 x RJ45 ports (RS-232) Term. blck. (RS-485)
  • Product series / family name
    RTUs
  • Functions
    Industrial Remote Terminal Unit (RTU)
  • Compliant with standard(s)
    CE EMI emissions FCC part 15 ANSI C37.90 (Surge withstand) IEEE-472 (Surge withstand) IEC 61131 IEC 60068-2-6 (vibration) EN 61326-1 EN 61000-4-2/3/4/6 EN 61010-1 EN 55022 ICES-003 class A UL 508 CSA C22.2 No.14 ABS UL Class I Division 2 listed UL 1604 (H

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
