SLX-6RS-1-D1 Red Lion Industrial Automation Components

SLX-6RS-1-D1 on Powermatic Associates
Red Lion

Part#:SLX-6RS-1-D1

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

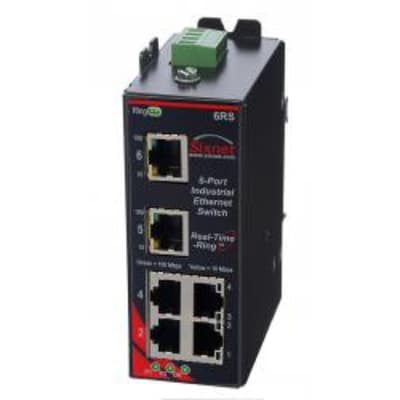

Red Lion SLX-6RS-1-D1 is a monitored industrial Ethernet ring switch from the Sixnet SLX series. It features a metallic case and is equipped with 6 RJ45 ports supporting 10/100BaseTX for connectivity. This switch operates on a supply voltage of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems, and is designed for DIN rail mounting. It is capable of operating in ambient air temperatures ranging from -40 to +85°C. The SLX-6RS-1-D1 supports Ethernet communication protocol and includes surge protection on power inputs. Its connection capacity is 6 ports, and it utilizes Real-Time Ring Protocol with Zero-Configuration and Real-Time Modbus over Ethernet monitoring for enhanced network management.

Product Details

  • Sub-range name
    Sixnet SLX series
  • Mounting mode
    DIN rail
  • Compliant with standard(s)
    IEEE 802.3 UL Class 1 Division 2 Hazardous locations
  • Secondary brand
    Sixnet
  • Connection capacity
    6-ports
  • Product series / family name
    Ethernet switches
  • Connection type
    6 x RJ45 ports (10/100BaseTX)
  • Material
    Metallic case
  • Equivalent to
    SLX6RS1D1
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc)
  • Communication protocol
    Ethernet
  • Benefits
    Fast wire-speed switching Intelligent message routing Auto-sensing for speed and duplex Auto-mdi/mdix-crossover works with straight or crossed cables Auto-polarity corrects for crossed signals No user configuration required Dual redundant power inputs
  • Main function
    Ethernet Switch
  • Functions
    Monitored industrial Ethernet ring switch Real-Time Ring Protocol with Zero-Configuration Real-Time Modbus over Ethernet monitoring
  • Ambient air temperature for operation
    -40...+85 °C
  • Order code / Manufacturer SKU
    SLX-6RS-1-D1
  • Protection functions
    Surge protection on power inputs

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
