PXU21A30 Red Lion Industrial Automation Components

PXU21A30 on Powermatic Associates
Red Lion

Part#:PXU21A30

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PXU21A30 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C and a network frequency of 50/60 Hz. It features a 1/8 DIN vertical design, measuring 49.5mm in width and 96.5mm in height, with 12mm orange/green digits for display. The controller is equipped with 2 user inputs, RS-485 logic, a solid-state relay (S.S.R.) control output, and a secondary relay control output, supporting a supply voltage range of 100-240Vac. It falls under the PXU PID controllers series and offers a degree of protection rated at IP65 NEMA 4X. With a 10Hz analog input sampling rate and RS-485 communication protocol, it includes 1 digital output (S.S.R.), 1 digital output (contact type) for secondary control, and 1 analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. The PXU21A30 also features heater current monitoring and 2 digital inputs for user-defined functions.

Product Details

  • Primary brand
    Red Lion
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Degree of protection
    IP65 NEMA 4X
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Main function
    Temperature controller (Digital)
  • Sub-range name
    PXU PID controllers series
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Protection functions
    Heater current monitoring
  • Network frequency
    50/60 Hz
  • Product series / family name
    Process controllers
  • Mounting mode
    Flush
  • Digital outputs
    1 x digital output (S.S.R.) 1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Communication protocol
    RS-485
  • Design
    2 user inputs RS-485 logic/S.S.R. control output secondary rly. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Ambient air temperature for operation
    0...+50 °C
  • Order code / Manufacturer SKU
    PXU21A30
  • Functions
    Digital temperature / process PID controller
  • Digital inputs
    2 x digital inputs (user inputs)
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Frequency
    10Hz analog input sampling rate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PXU21A30 Related Documents

Red Lion - PXU - Manual.pdfRed Lion - PXU - Data Sheet.pdfRed Lion - PXU - Installation Guide.pdf

Similar products from: Red Lion Industrial Automation Components

CBLMAT02 on Powermatic Associates

CBLMAT02

Red Lion

Red Lion CBLMAT02 is a communication cable designed to connect Graphite, DSP, G3, and Modular Controller units to Matsushita FP0. It features a 5-pin male connector on one end and an RJ12 connector on the other, with a total length of 10 feet (3.05 meters). This cordset is specifically crafted for facilitating communication between the mentioned devices.

3 in stock
G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

Red Lion PAXLBK25 is a label kit designed for marking purposes.

16 in stock
104TX on Powermatic Associates

104TX

Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

1 in stock
C48CS003 on Powermatic Associates

C48CS003

Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 DIN (48x48mm) enclosure. It operates on a supply voltage range of 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, and also supports a DC supply voltage of 11-14Vdc, specifically 12Vdc. The dimensions of this counter are standardized to 1/16 DIN, measuring W48mm x H48mm (1.89" x 1.89"). It offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. The C48CS003 features 1 high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated as USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. For output, it provides 1 digital output (NPN) and 1 digital output (contact type NO).

1 in stock

Manufacturer warranty

PXU21A30 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare PXU21A30 with other Industrial Automation Components products

Primary brand

Display

Degree of protection

Compliant with standard(s...

Benefits

Main function

Sub-range name

Analog inputs

Protection functions

Network frequency

Selected product

PXU21A30
Backordered
PXU21A30
Red Lion

Red Lion PXU21A30 is a digital temperature/process PID controller designed for flush mounting with a...

Primary brandRed Lion

Display2 rows x 4-digits negative i...

Degree of protectionIP65 NEMA 4X

Compliant with standard(s)CE EN 61326-1 immunity to in...

BenefitsUniversal inputs Full PID co...

Main functionTemperature controller (Digi...

Sub-range namePXU PID controllers series

Analog inputs1 x analog input (4-20mA / 0...

Protection functionsHeater current monitoring

Network frequency50/60 Hz

C48CS003
1 in stock
C48CS003
Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 D...

Primary brandRed Lion

Display2 rows x 6-digits reflective...

Degree of protection-

Compliant with standard(s)-

Benefits-

Main functionCounter (Digital)

Sub-range nameC48 series

Analog inputs-

Protection functions-

Network frequency-

PAXT0010
1 in stock
PAXT0010
Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 u...

Primary brandRed Lion

Display1 row x 5-digits red charact...

Degree of protection-

Compliant with standard(s)-

Benefits-

Main functionThermometer (Digital)

Sub-range namePAX series

Analog inputs1 x analog input (4-20mA / 0...

Protection functions-

Network frequency-

About the manufacturer

Red Lion

Powermatic Associates is an authorized Red Lion distributor, proudly offering a wide range of their innovative industrial automation and networking products. Red Lion Controls has been a leader in delivering reliable solutions for over 50 years, specializing in advanced communication, monitoring, and control for diverse industries. Their comprehensive product line includes cutting-edge HMI operato...

Recently viewed products

M-2218-3.0ES500 on Powermatic Associates

M-2218-3.0ES500

Novanta IMS

Novanta IMS M-2218-3.0ES500 is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a 500-line single-end optical encoder with an index mark and a smooth shaft with a single flat (single shaft end) single (1) motor stack. It is designed with bare end flying leads for connection, operates on a rated current of 3A, and supports a supply voltage range of 24Vdc-75Vdc, including 48Vdc, 60Vdc, and 72Vdc options. This stepper motor is equipped with a 57x57mm flange for mounting, can operate in ambient air temperatures ranging from -25 to +40°C, and has a moment of inertia of 0.12kg.cm^2. It delivers a stall torque of 71N.cm (100oz-in) and can be stored in temperatures ranging from -25 to +70°C. The motor offers a resolution of 1.8° step angle.

0 in stock

Relevant products

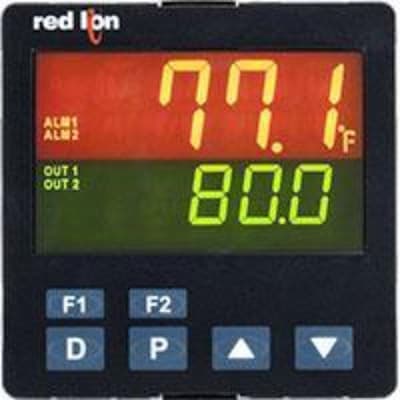

PXU21CE0 on Powermatic Associates
