CUB5TB00 Red Lion Industrial Automation Components

CUB5TB00 on Powermatic Associates
Red Lion

Part#:CUB5TB00

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

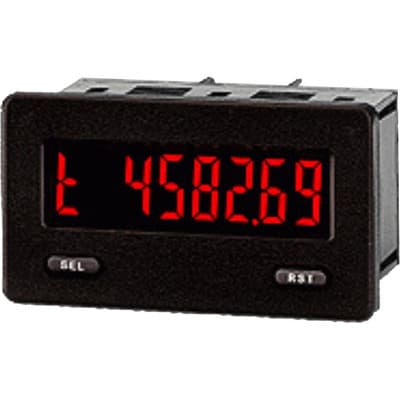

Red Lion CUB5TB00 is a digital timer from the CUB5T series, designed with a compact form factor of W75xH39mm (3"x 1.5"). It features an IP65 NEMA 4X degree of protection, making it suitable for use in environments requiring dust and water resistance. This timer is equipped with two digital inputs (Sink), labeled INPUT A and INPUT B, to facilitate various timing functions. It operates on a supply voltage range of 9-28Vdc, accommodating both 12Vdc and 24Vdc systems.

Product Details

  • Product series / family name
    Process timers
  • Display
    1 row x 8-digits (1 mode digit + 7 timing digits) red / green characters (11.7mm / 0.46" high) backlight LCD display
  • Supply voltage (DC)
    9-28Vdc (12Vdc / 24Vdc)
  • Degree of protection
    IP65 NEMA 4X
  • Main function
    Timer (Digital)
  • Sub-range name
    CUB5T series
  • Design
    W75xH39mm (3"x 1.5")
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Primary brand
    Red Lion
  • Functions
    Digital timer
  • Digital inputs
    1 x digital input (Sink) (INPUT A) 1 x digital input (Sink) (INPUT B)
  • Order code / Manufacturer SKU
    CUB5TB00

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
