CX-02GM Mencom Electronic Components

CX-02GM on Powermatic Associates

Mencom

Part#:CX-02GM

Manufacturer:Mencom

Product Lifecycle:Active

In-stock parts: 58

Nov 16, 2024

Mixo series, Male Rectangular Insert, 2 pin, 100 amp, Crimp

About the manufacturer: Mencom is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. Since 1987, Mencom Corporation has been your go-to source for affordable industrial electrical connector solutions. Count on our experienced team to deliver top-quality products with unwavering dedication.

Check out the CX-02GM Mencom price in the box on the right side or send a quick quote.

Product Details

Upper AWG
2
Cover
No
Amperage Rating
100
Termination
Crimp
Temperature Range in Degrees Celsius
-40 C to +125 C
Lower AWG
5
Weight (lbs.)
0.069000
Gasket/O-Ring
No
Component Type
Insert
Voltage Rating
600
Pin Count
2
Number of Entries
0
Gender
Male
Product Type
Rectangular Connectors
Housing/Insert Type
MIXO
ILME Series
MIXO

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents CX-02GM Specs

CX-02GM CX-02GM.DXF-1631088990338.dxf

CX-02GM CX-02GM.ZIP-1631088990346.zip

CX-02GM CX-02GM.PDF-1631088990341.pdf

CX-02GM 265.pdf-1631088990348.pdf

CX-02GM CX-02GM.DWG-1631088990343.dwg

This item can ship within 24h!

Manufacturer warranty

$13.46

Stock:

58

Select Qty:

$13.46

$13.46 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Relevant products

CX-04TF on Powermatic Associates

CX-04TF

Verified stock: 14

MIXO Frame for housings, Size 77.27, For 4 Module

Mencom

CX-02GF on Powermatic Associates

CX-02GF

Verified stock: 4

Mixo series, Female Rectangular Insert, 2 pin, 100 amp, Crimp

Mencom

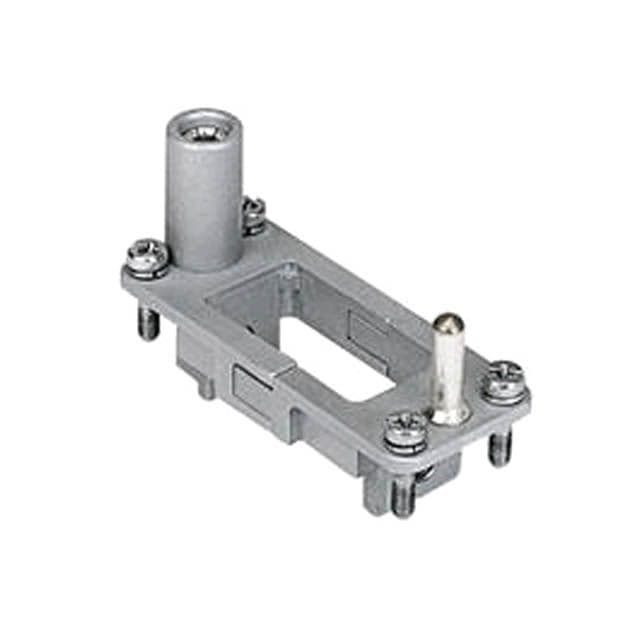

CX-01T on Powermatic Associates
