4510063 Lapp Electronic Components

Name: 4510063
Brand: Lapp

Part#:4510063

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

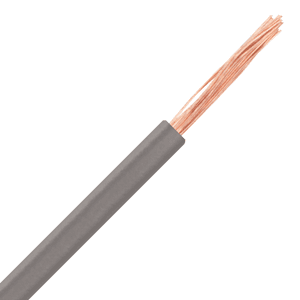

4510063 - LAPP ÖLFLEX® Harmonized Hook-Up Wire - Type H05V-K - 18 AWG - Gray

Product Details

SERIES
ÖLFLEX® H05V-K
TYPE
H05V-K
MANUFACTURER PART NUMBER
4510063
VOLTAGE
500V
AWG/GAUGE
18
CONDUCTOR STRANDING
Stranded
STANDARDS/APPROVALS
CE Approved
CONDUCTOR MATERIAL
Bare copper
JACKET COLOR
Gray
JACKET MATERIAL
PVC
TEMPERATURE
-22°F to +176°F -30°C to +80°C
INSULATION MATERIAL
PVC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

4510063 Related Documents

Datasheet.pdf
