2212070 Lapp Industrial Automation Components

Name: 2212070
Brand: Lapp

Part#:2212070

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

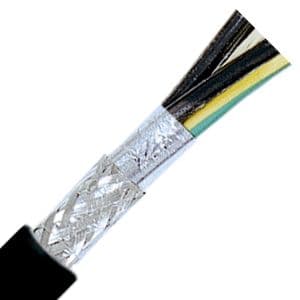

2212070 Lapp - ÖLFLEX TRAY II CY 7G4 12/7C

Product Details

Voltage
600 volts
Stranding
Class 5 Fine Wire
Jacket Material
Thermoplastic Polymer
Operating Temperature
-25 degrees celsius, 90 degrees celsius
Jacket Color
Black
Insulation Material
Nylon, PVC
Gauge
12 american wire gauge
Conductor Material
Finely Stranded Bare Copper
Bend Radius
6 X Cable Diameter
WEIGHT LBS/MFT
335
APPLICATION
Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used
UL STYLE / STANDARD
UL 13 UL 1063 UL 1277 UL 1690 UL 2250
MANUFACTURER PART NUMBER
2212070
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
STATIC TEMPERATURE RATING
-40°F to +221°F-40°C to +105°C
TRAY RATINGS
UL ITC-ER UL PLTC-ER UL TC-ER
DYNAMIC TEMPERATURE RATING
-13°F to +221°F -25°C to +105°C
ATTRIBUTES
UL Oil Res I/IISunlight resistant Direct burialNFPA 79
TEMPERATURE RANGE
-13°F to +194°F -25°C to +90°C
INSULATION
PVC/Nylon

VOLTAGE

600V

NOMINAL OD (MM)

15.5

JACKET COLOR

Black

CONDUCTOR COLOR

Black with white printing plus green/yellow ground

NOMINAL OD (IN)

0.612

NUMBER OF CONDUCTORS

CONDUCTOR MATERIAL

Bare copper

CONDUCTOR STRANDING

Stranded

JACKET MATERIAL

Thermoplastic Polymer

SHIELDING

Braid

SERIES

ÖLFLEX® TRAY II / TRAY II CY

AWG/GAUGE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Cable, Flexible, ÖLFLEX TRAY II CY, 12 AWG/7C, Shielded, 600V, UL TC-ER, c(UL) CIC/TC FT4
