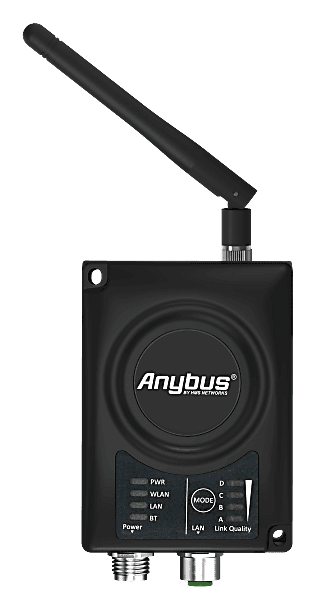

AWB3015-B HMS Networks Industrial Automation Components

Product Details

• Predecessor
  024140-B
• Export Control Classification Number (ECCN) (ERP)
  5A992.c
• Dual Usage (ERP)
  No
• Max No. Of Connections, Access Point
  7
• HS Code
  8517620000
• Country of Origin
  Sweden
• Security (LE)
  AES-CCM cryptography
• Bluetooth Version (LE)
  Bluetooth v4.0
• Operation Mode (LE)
  Access Point, Client
• Security
  Authentication & Authorization, Encryption & Data Protection, Privacy & Confidentiality, NIST Compliant, FIPS Approved
• Bluetooth Version
  Classic Bluetooth v2.1
• Max No. Of Connections (LE)
  7
• RF Output Power (LE)
  10 dBm EIRP (including max antenna gain 3 dBi)
• FCC
  Yes
• Max No. Of Connections
  7
• Operation Mode
  Access Point, Client
• RF Output Power
  14 dBm EIRP (including max antenna gain 3 dBi)
• Environment
  EN 61000-6-2:2019 EN 61000-4-2:2009 EN 61000-4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2014 EN 61000-6-4:2019 EN 55016-2-3:2017 EN 55032:2015 EN 301 489-1 V2.2.3 EN 301 489-17 V3.1.1
• Protection Class IP
  IP65
• Approved Radio Certificates (Country)
  Europe, USA, Canada, Japan, Australia, Colombia, Turkey, Malaysia, Peru, Mexico, Argentina, Brazil, India, Philippines, South Africa, Korea
Connectors / Input / Output
1x M12 for Ethernet (4-pin, D-coded) 1x M12 for Power 5-pin, A-coded) RP-SMA antenna connector for external antenna
RED
Yes
ATEX
Yes
UL
Yes
Antenna Connector
RP-SMA
Contains Battery
No
Storage Temperature °C Max
85 °C
Antenna
Included
CE
Yes
Packaging Material
Cardboard
Storage Temperature °C Min
-40 °C
Housing Materials
Plastic
Warranty (years)
3
Power Consumption (W)
1.7W
Operating Temperature °C Max
65 °C
Frequencies & Bands
2.4 GHz Access Point: 1–11 2.4 GHz Client: 1–11 + 12 & 13 depending on regulatory domain scan 5 GHz Access Point: 36–48 (U-NII-1) 5 GHz Client: 36-48 + 100–116, 132–140, 120–128 depending on regulatory domain scan. (UNII-1, U-NII-2, U-NII-2e)
Net Weight (ERP) (g)
107 g
Net Width (ERP) (mm)
68 mm
Mounting
Wall mount
Net Height (ERP) (mm)
93 mm
Net Depth (ERP) (mm)
33 mm
Content of Delivery
Quick start documentation Power supply not included
Operating Temperature °C Min
-30 °C
