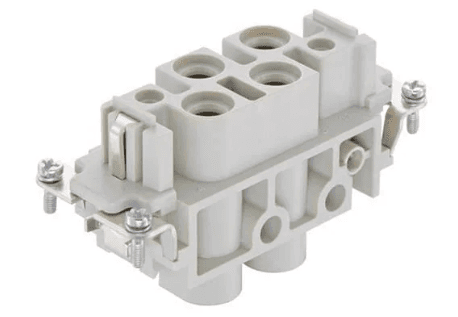

09 38 006 2711 Harting Electronic Components
Part#:09 38 006 2711
Manufacturer:Harting
Category:Electronic Components
Product Lifecycle:Active
Mar 15, 2025
Product description
Harting 09380062711 - Inserts, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 80 A, Size: 16 B, Contacts: 4, Conductor cross-section: 1.5 ... 16 mm², Copper alloy, Silver plated
Product Details
- REACH SVHC substances Lead
- RoHS exemptions 6(a) / 6(a)-I: Lead as an alloying element in steel for machining purposes and in galvanised steel containing up to 0,35 % lead by weight / Lead as an alloying element in steel for machining purposes containing up to 0,35 % lead by weight and in ba
- ECHA SCIP number 5dbb3851-b94e-4e88-97a1-571845975242
- REACH ANNEX XIV substances No
- REACH Annex XVII substances No
- China RoHS 50
- ELV status compliant with exemption
- RoHS compliant with exemption
- Material flammability class acc. to UL 94 V-0
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
- Mating cycles ≥ 500
- Colour (insert) RAL 7032 (pebble grey)
- Material (insert) Polycarbonate (PC)
- Limiting temperature -40 ... +125 °C
- Tightening torque 1.2 Nm @ 1.5 mm², 2 Nm @ 2.5 mm², 3 Nm @ 4 mm², 3 Nm @ 6 mm², 3 Nm @ 10 mm², 3 Nm @ 16 mm²
- Insulation resistance >1010Ω
- Rated current acc. to CSA 80 A
- Rated current acc. to UL 80 A
- Rated voltage acc. to CSA 300 V
- Contact resistance ≤ 0.3 mΩ
- Pollution degree 3
- Stripping length 14 mm
- Rated impulse voltage 8 kV
- Rated voltage acc. to UL 600 V
- Rated voltage 830 V
- Rated current 80 A
- Conductor cross-section 1.5 ... 16 mm²
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
