92.03.0SMA Finder Control Relays

92.03.0SMA on Powermatic Associates
Finder

Part#:92.03.0SMA

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

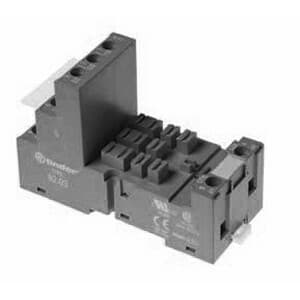

Plug-in socket with metallic retaining / release clip - Finder - Rated current 16A - Box-clamp connections - DIN rail / Panel mounting - Black color

Product Details

  • Main function
    Socket
  • Connection type
    Box-clamp
  • Rated current
    16A
  • Compliant with standard(s)
    cURus IMQ CSA EAC CE EN 60664-1 EN 60715 EN 61984
  • Mounting mode
    DIN rail Panel
  • Primary brand
    Finder
  • Mounting location
    EN61984
  • Color
    Black
  • Technical compatibility with
    Series 62.32 Series 62.33

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
