56.32.9.012.0000 Finder Control Relays

56.32.9.012.0000 on Powermatic Associates
Finder

Part#:56.32.9.012.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

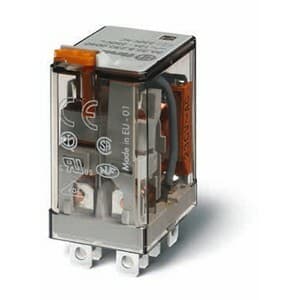

Finder 56.32.9.012.0000 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at both 250Vac (AC-1) and 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc under DC-1 design conditions. It features Normally Open (NO) auxiliary contacts for DC-1 applications. The supply voltage is specified for 2C/O or DPDT (Double Pole Double Throw) configurations, with an ambient air temperature for operation at 700VA (230Vac, AC-15) and for storage at 3000VA (250Vac, AC-1). The rated voltage for AC operation is specified alongside a control voltage (AC) of 4 kV. This relay is designed with 2 poles, a plug-in residual current sensitivity, and supports up to 100,000 operations for Normally Closed (NC) circuits. The construction material for the contacts is AgNi (Silver Nickel), and it is designed to withstand 50,000,000 operations. The ambient air temperature range for operation is -40 to +70 degrees Celsius, and it utilizes a communication protocol labeled as C. The protection functions are rated for 250Vac, with a rated active power of 2 Pole(s).

Product Details

  • Product series / family name
    56 series
  • Rated voltage (AC)
    250Vac
  • Rated impulse voltage (Uimp)
    4 kV
  • Main function
    Relay
  • Connection type
    Fast-on 187
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Poles
    2 Pole(s)
  • Control Voltage (DC)
    12Vdc
  • Mechanical durability (at no load)
    50 000 000 operations
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Mounting mode
    Plug-in
  • Ambient air temperature for operation
    -40...+70 °C
  • Contacts coating
    AgNi (Silver Nickel)
  • Primary brand
    Finder
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Electrical durability (with load)
    100 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
