55.32.9.125.0070 Finder Control Relays

55.32.9.125.0070 on Powermatic Associates
Finder

Part#:55.32.9.125.0070

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

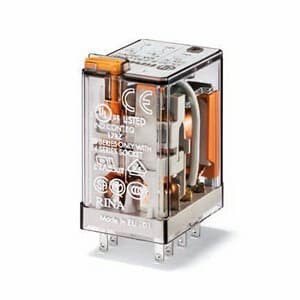

General purpose plug-in electromechanical relay with LED indicator - Finder (55 Series) - Control coil voltage 125Vdc - 2 poles (2P) - 2C/O / DPDT (Double Pole Double Throw) contact - Rated current 10A (250Vac; AC-1) / 10A (30Vdc; DC-1) - Rated switching

Product Details

  • Primary brand
    Finder
  • Product series / family name
    55 Series
  • Mounting mode
    Plug-in
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    2 Pole(s)
  • Mechanical durability (at no load)
    50 000 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Main function
    Relay
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Control Voltage (DC)
    125Vdc
  • Net Width (mm)
    27.7 mm
  • Rated voltage (AC)
    250Vac
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Net Depth (mm)
    20.7 mm
  • Connection type
    Solder pin
  • Ambient air temperature for operation
    -40...+85 °C
  • Electrical durability (with load)
    200 000 operations
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Height (mm)
    37.2 mm
  • Rated impulse voltage (Uimp)
    4 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
