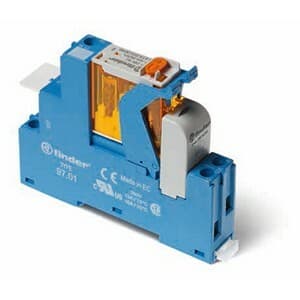

4C.01.8.120.0060 Finder Control Relays

4C.01.8.120.0060 on Powermatic Associates
Finder

Part#:4C.01.8.120.0060

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Electromechanical interface relay module pre-assembled with socket base and ejector - with LED indicator - Finder (4C series) - Control coil voltage 120Vac (50Hz/60Hz) - 1 pole (1P) - 1C/O / SPDT (Single Pole Double Throw) contact - Rated current 16A (250

Product Details

  • Primary brand
    Finder
  • Connection type
    Box-clamp
  • Control Voltage (AC)
    120Vac (50Hz/60Hz)
  • Mechanical durability (at no load)
    10 000 000 operations
  • Main function
    Relay
  • Rated current
    16A (250Vac; AC-1) 16A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.15A (220Vdc; DC-1)
  • Poles
    1 Pole(s)
  • Ambient air temperature for operation
    -40...+70 °C
  • Contents
    relay socket
  • Mounting location
    EN61984
  • Product series / family name
    4C series
  • Rated voltage (AC)
    250Vac
  • Technology used in component
    Varistor coil EMC surge suppressor module
  • Electrical durability (with load)
    100 000 operations
  • Net Width (mm)
    15.8 mm
  • Mounting mode
    DIN rail Plug-in
  • Degree of protection
    IP20
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated power
    750VA (230Vac; AC-15) 4000VA (250Vac; AC-1)
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Compliant with standard(s)
    cURus IMQ CSA VDE EAC CE EN 60664-1 EN 60715 EN 61000-4-4 EN 61000-4-5 EN 61810-1 EN 61984
  • Contacts coating
    AgNi (Silver Nickel)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

4C.01.8.120.0060 Related Documents

Finder - 4C Series - Catalogue.pdf
