48.52.8.120.0060 Finder Control Relays

48.52.8.120.0060 on Powermatic Associates
Finder

Part#:48.52.8.120.0060

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

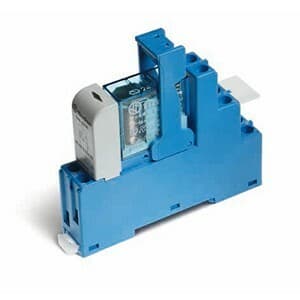

Electromechanical interface relay module pre-assembled with socket base and ejector - with LED indicator - Finder (48 series) - Control coil voltage 120Vac (50Hz/60Hz) - 2 poles (2P) - 2C/O / DPDT (Double Pole Double Throw) contact - Rated current 8A (250

Product Details

  • Rated power
    400VA (230Vac; AC-15) 2000VA (250Vac; AC-1)
  • Control Voltage (AC)
    120Vac (50Hz/60Hz)
  • Technology used in component
    Varistor coil EMC surge suppressor module
  • Net Width (mm)
    15.8 mm
  • Primary brand
    Finder
  • Main function
    Relay
  • Poles
    2 Pole(s)
  • Mounting mode
    DIN rail Plug-in
  • Ambient air temperature for operation
    -40...+70 °C
  • Mounting location
    EN61984
  • Product series / family name
    48 series
  • Connection type
    Box-clamp
  • Compliant with standard(s)
    S+ NF cURus Lloyd Register (LR) RINA IMQ CSA VDE EAC CE EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1 EN 61984
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated voltage (AC)
    250Vac
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Contents
    relay socket
  • Contacts coating
    AgNi (Silver Nickel)
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Degree of protection
    IP20
  • Electrical durability (with load)
    100 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

48.52.8.120.0060 Related Documents

Finder - 48 Series - Catalogue.pdf
