46.52.9.024.0040 Finder Control Relays

46.52.9.024.0040 on Powermatic Associates
Finder

Part#:46.52.9.024.0040

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

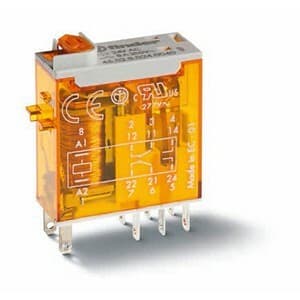

Finder 46.52.9.024.0040 is a relay with solder pin connection type, designed for various rated currents: 8A at 250Vac (AC-1), 6A at 30Vdc (DC-1), 0.5A at 110Vdc (DC-1), and 0.15A at 220Vdc (DC-1). It features normally open (NO) auxiliary contacts and is suitable for supply voltages of 2C/O / DPDT (Double Pole Double Throw). The relay operates within an ambient air temperature range of -40 to +70 degrees Celsius and has a rated voltage for AC operations at 250Vac. It supports a control voltage (AC) of 6 kV and is designed for plug-in mounting with a net depth of 39.3 mm, a mounting mode width of 29 mm, and a power consumption of 0.5 W. The relay is rated for 2 poles, with a response time for 100,000 operations and a durability of up to 10,000,000 operations. The contact material is AgNi (Silver Nickel).

Product Details

  • Primary brand
    Finder
  • Connection type
    Solder pin
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Net Height (mm)
    39.3 mm
  • Rated current
    8A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.15A (220Vdc; DC-1)
  • Control Voltage (DC)
    24Vdc
  • Electrical durability (with load)
    100 000 operations
  • Net Width (mm)
    29 mm
  • Rated voltage (AC)
    250Vac
  • Mounting mode
    Plug-in
  • Mechanical durability (at no load)
    10 000 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Product series / family name
    46 series
  • Rated power
    350VA (230Vac; AC-15) 2000VA (250Vac; AC-1) 0.5W
  • Power consumption
    0.5 W
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Depth (mm)
    12.4 mm
  • Main function
    Relay
  • Poles
    2 Pole(s)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 60664-1 EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Ambient air temperature for operation
    -40...+70 °C
  • Degree of pollution
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
