40.61.7.048.4301 Finder Control Relays

40.61.7.048.4301 on Powermatic Associates
Finder

Part#:40.61.7.048.4301

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

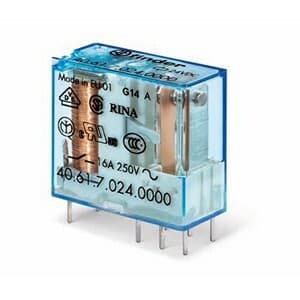

Miniature electromechanical PCB power relay - Wash-tight (RTIII) - Finder (40 series) - Control coil voltage 48Vdc - 1 pole (1P) - 1NO / SPST-NO (Single Pole Single Throw - Normally Open) contacts - Rated current 16A (250Vac; AC-1) / 16A (30Vdc; DC-1) - R

Product Details

  • Main function
    Relay
  • Product series / family name
    40 series
  • Distance
    5.3mm pins pitch
  • Primary brand
    Finder
  • Rated power
    1000VA (230Vac; AC-15) 4000VA (250Vac; AC-1) 0.5W
  • Rated voltage (AC)
    250Vac
  • Connection type
    Solder pin
  • Poles
    1 Pole(s)
  • Rated current
    16A (250Vac; AC-1) 16A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Control Voltage (DC)
    48Vdc
  • Number of Normally Open (NO) circuits
    1 NO Pole(s)
  • Contacts type
    1NO / SPST-NO (Single Pole Single Throw - Normally Open)
  • Mounting mode
    PCB Plug-in
  • Degree of protection
    RT III
  • Ambient air temperature for operation
    -40...+85 °C
  • Power consumption
    0.5 W
  • Electrical durability (with load)
    100 000 operations
  • Mechanical durability (at no load)
    10 000 000 operations
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Height (mm)
    25 mm
  • Net Width (mm)
    29 mm
  • Net Depth (mm)
    12.4 mm
  • Contacts coating
    AgSnO2 (Silver / Tin Oxide)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

40.61.7.048.4301 Related Documents

Finder - 40 Series - Catalogue.pdf
