Powermatic Associates Logo

40.52.8.110.0000 Finder Control Relays

40.52.8.110.0000 on Powermatic Associates
Finder

Part#:40.52.8.110.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

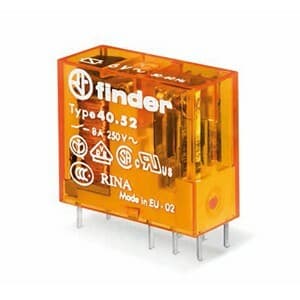

Product description

Finder 40.52.8.110.0000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), operates within an ambient air temperature range of -40 to +85 degrees Celsius for both operation and storage, and is rated for 400VA at 230Vac (AC-15) and 2000VA at 250Vac (AC-1) with a control voltage of 6 kV. The relay features a net width of 29 mm, a net depth of 25 mm, and a power consumption of 12.4 mm, with a visual position indicator of 5.3mm pins pitch. It is designed for PCB or plug-in mounting, has a color code of 110Vac (50Hz/60Hz), and is equipped with AgNi (Silver Nickel) contacts rated for 100,000 operations at NC circuits and 10,000,000 operations overall.

Product Details

  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Control Voltage (AC)
    110Vac (50Hz/60Hz)
  • Degree of protection
    RT II
  • Net Width (mm)
    29 mm
  • Product series / family name
    40 series
  • Mounting mode
    PCB Plug-in
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Depth (mm)
    12.4 mm
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Electrical durability (with load)
    100 000 operations
  • Net Height (mm)
    25 mm
  • Distance
    5.3mm pins pitch
  • Connection type
    Solder pin
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Mechanical durability (at no load)
    10 000 000 operations
  • Primary brand
    Finder
  • Rated power
    400VA (230Vac; AC-15) 2000VA (250Vac; AC-1)
  • Poles
    2 Pole(s)
  • Ambient air temperature for operation
    -40...+85 °C
  • Contacts coating
    AgNi (Silver Nickel)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
