40.51.8.240.0000 Finder Control Relays

40.51.8.240.0000 on Powermatic Associates
Finder

Part#:40.51.8.240.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

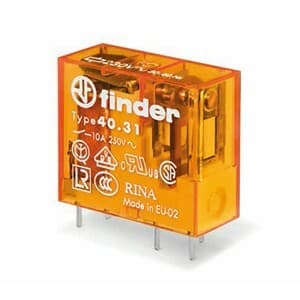

Finder 40.51.8.240.0000 is a relay with a solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw), and is capable of handling ambient air temperatures for operation and storage from -40 to +85 degrees Celsius. The relay supports a communication protocol of type C, has a net width of 25 mm, and a net depth of 29 mm. It is designed for PCB or plug-in mounting with a control voltage (AC) of 6 kV and a rated active power of 1 Pole(s). The power consumption is specified for 240Vac (50Hz/60Hz) operations, with a visual position indicator featuring 5.3mm pins pitch. The relay is designed for up to 200,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall, with a length of AgNi (Silver Nickel) contacts and a diameter conducive to reliable performance.

Product Details

  • Rated voltage (AC)
    250Vac
  • Poles
    1 Pole(s)
  • Primary brand
    Finder
  • Rated impulse voltage (Uimp)
    6 kV
  • Distance
    5.3mm pins pitch
  • Mounting mode
    PCB Plug-in
  • Electrical durability (with load)
    200 000 operations
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Control Voltage (AC)
    240Vac (50Hz/60Hz)
  • Ambient air temperature for operation
    -40...+85 °C
  • Contacts coating
    AgNi (Silver Nickel)
  • Main function
    Relay
  • Connection type
    Solder pin
  • Degree of protection
    RT II
  • Net Depth (mm)
    12.4 mm
  • Product series / family name
    40 series
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Net Height (mm)
    25 mm
  • Net Width (mm)
    29 mm
  • Mechanical durability (at no load)
    10 000 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

40.51.8.240.0000 Related Documents

Finder - 40 Series - Catalogue.pdf
